Surron Light Bee L1E | Road Legal Electric Bike
• L1E is designed for public roads. This beast has high powered headlights, brake light, turn signals, dashboard, mirrors, anti-theft lock.
• 12 Month Warranty - Battery, Controller and Charger
• 47kg Ultra Light Weight Design

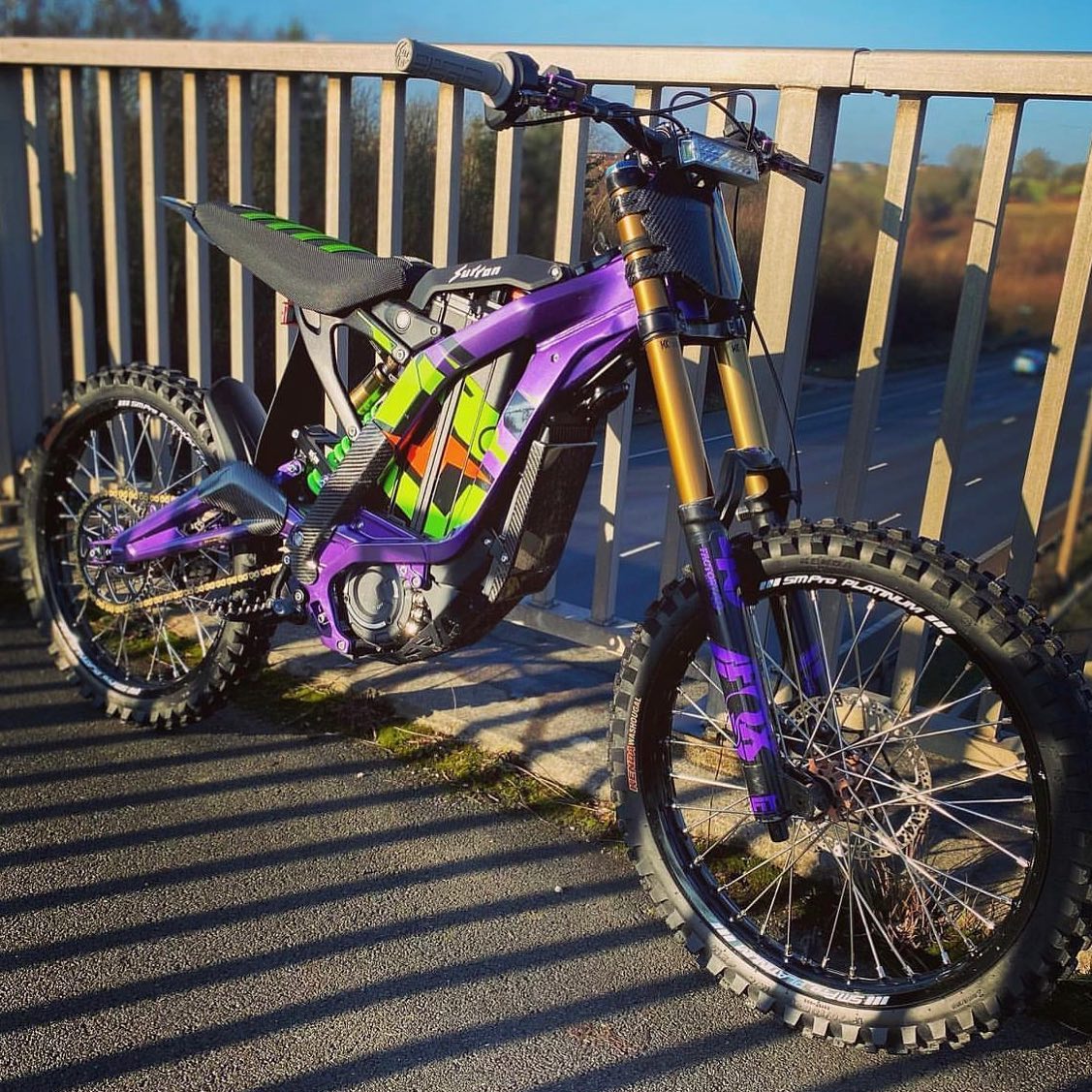

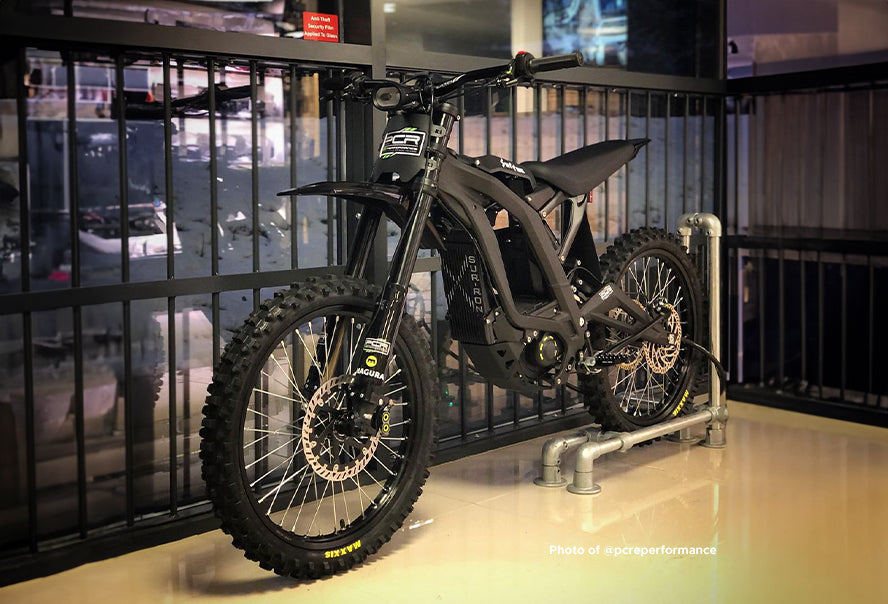

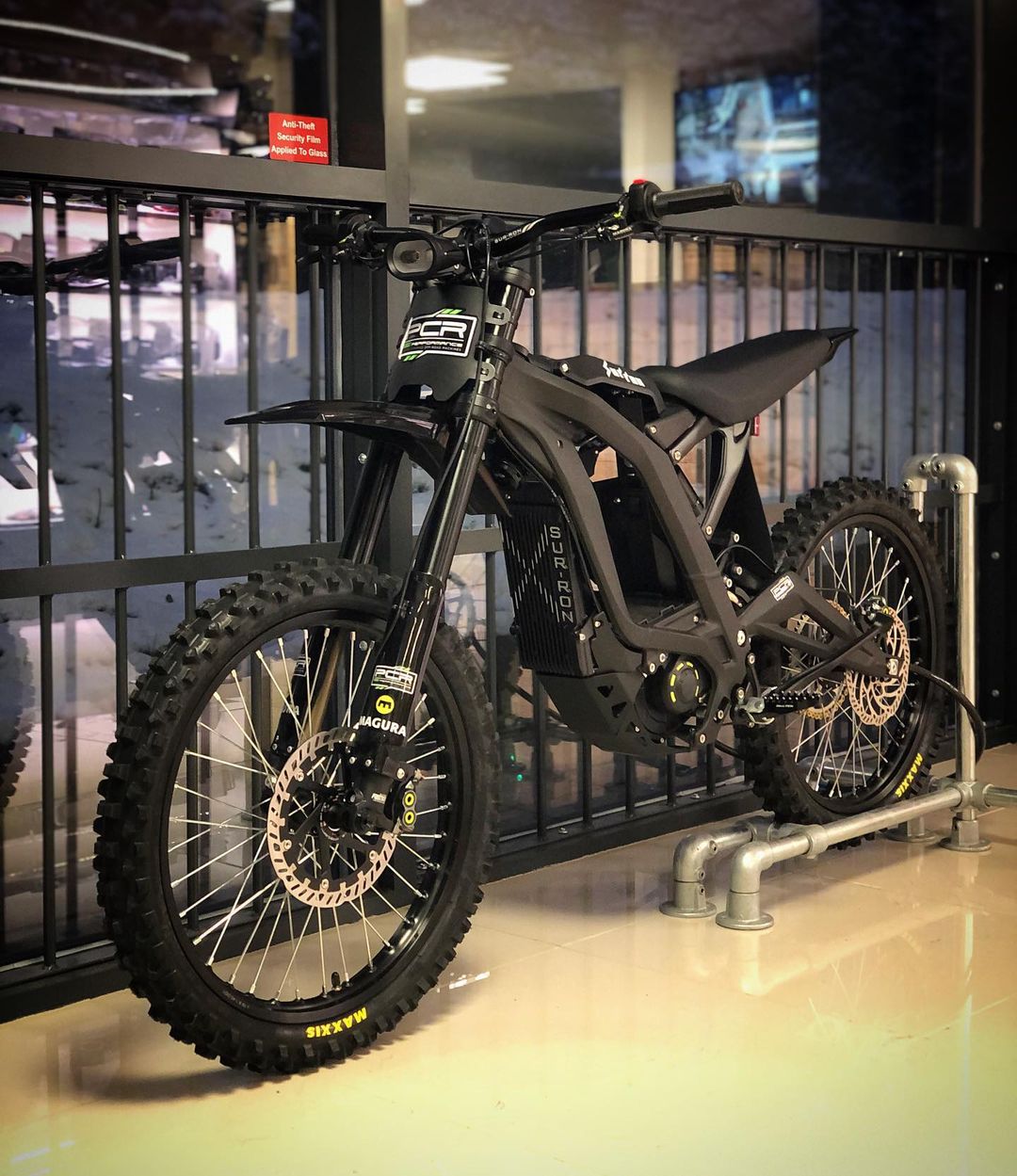

• Fully Customizable - We've seen monstrous customizations from our buyers
• IP55 Water Resistant
• Easy to Ride: Worried about handling a big, bulky bike? Don't be! The Light Bee X is lightweight and nimble, making it easy to maneuver even for beginners.
• Built to Last: Surron is known for quality and durability, and the Light Bee L1E is no exception.
• Environmentally Friendly: Zero emissions and low energy consumption, electric bikes are a cleaner, greener way to get around.
Pickup currently unavailable at Unit 3/76 Porana Road
Surron Light Bee L1E | Road Legal Electric Bike
Black
Unit 3/76 Porana Road
unit 3/76 Porana Road
Hillcrest
AUK
Auckland 0627
New Zealand

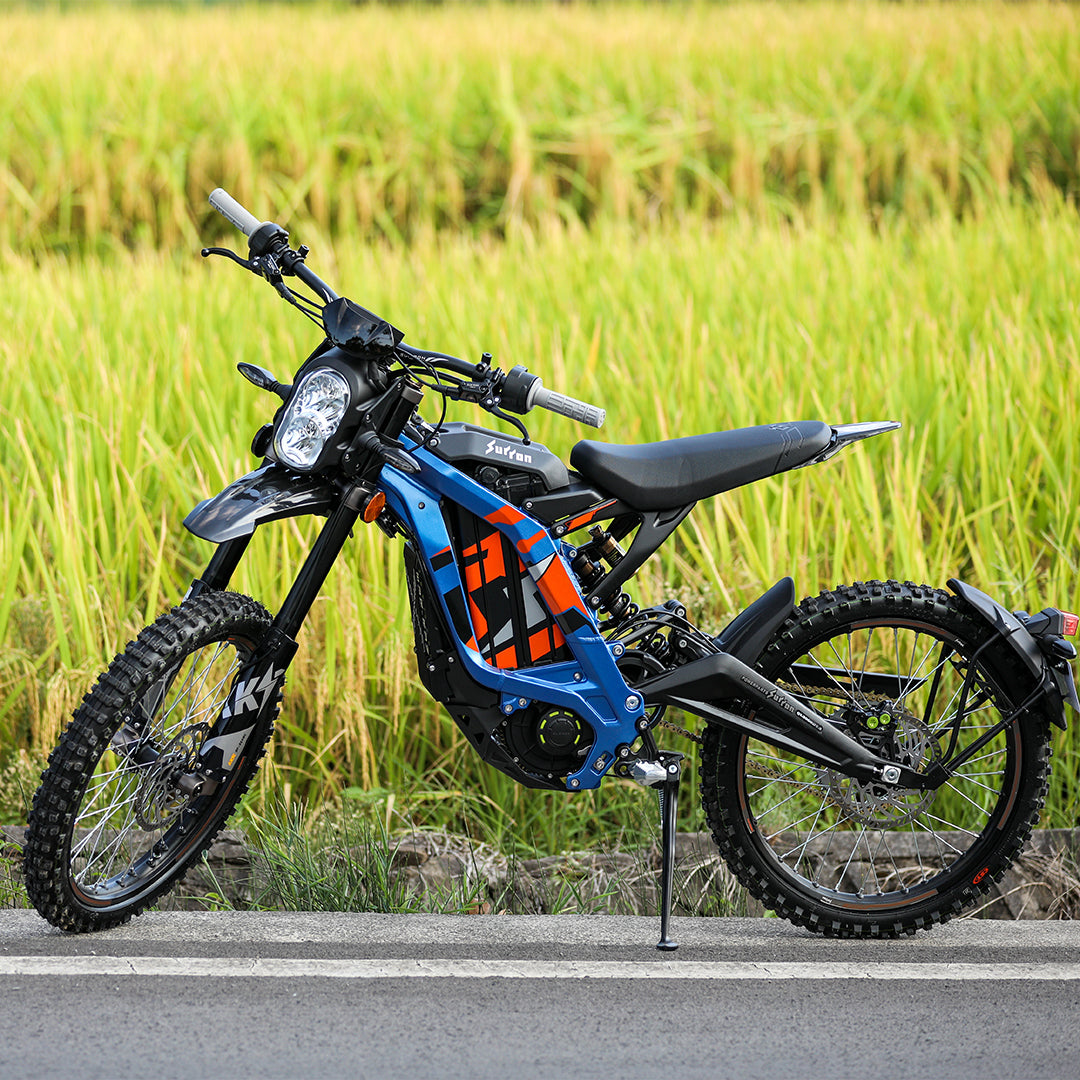

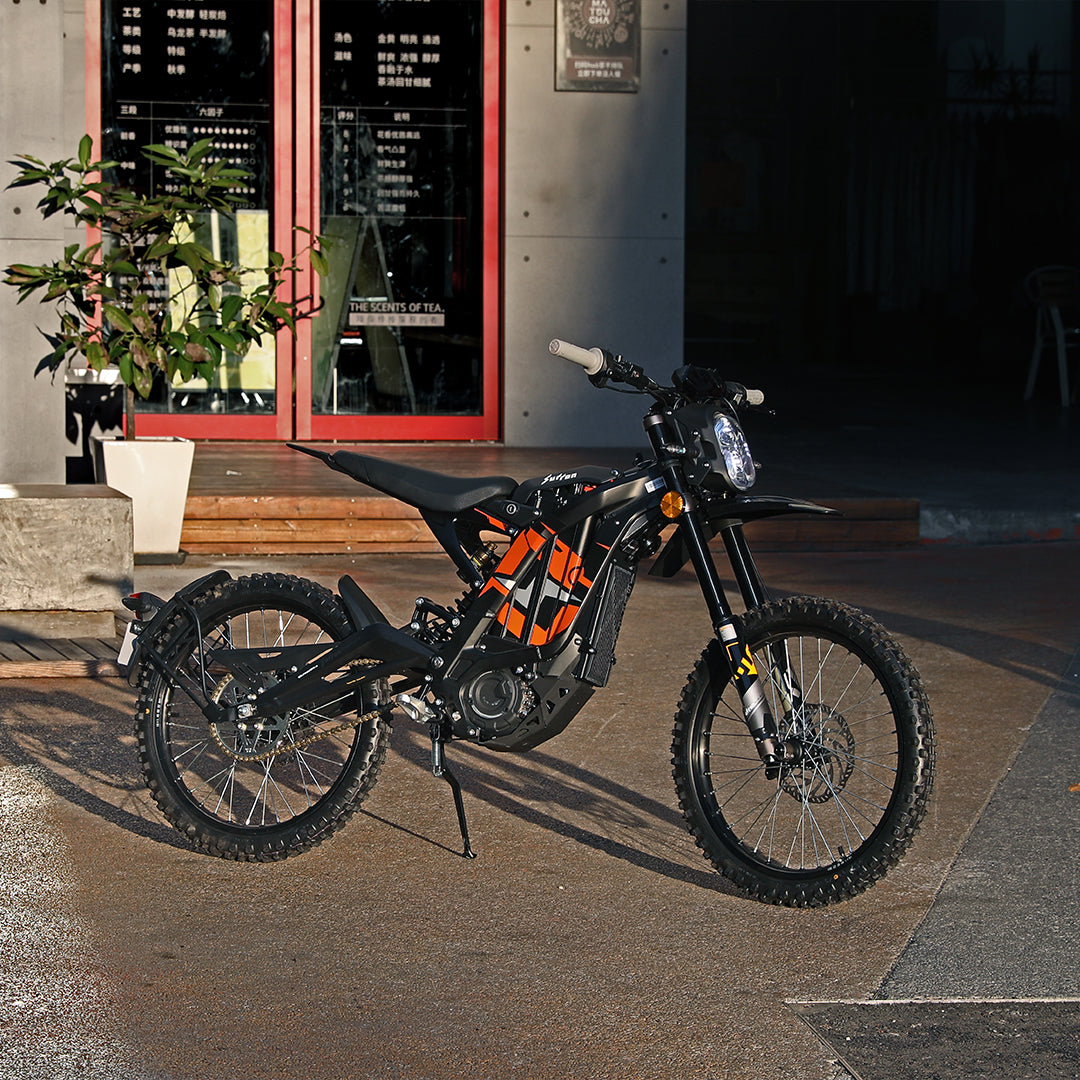

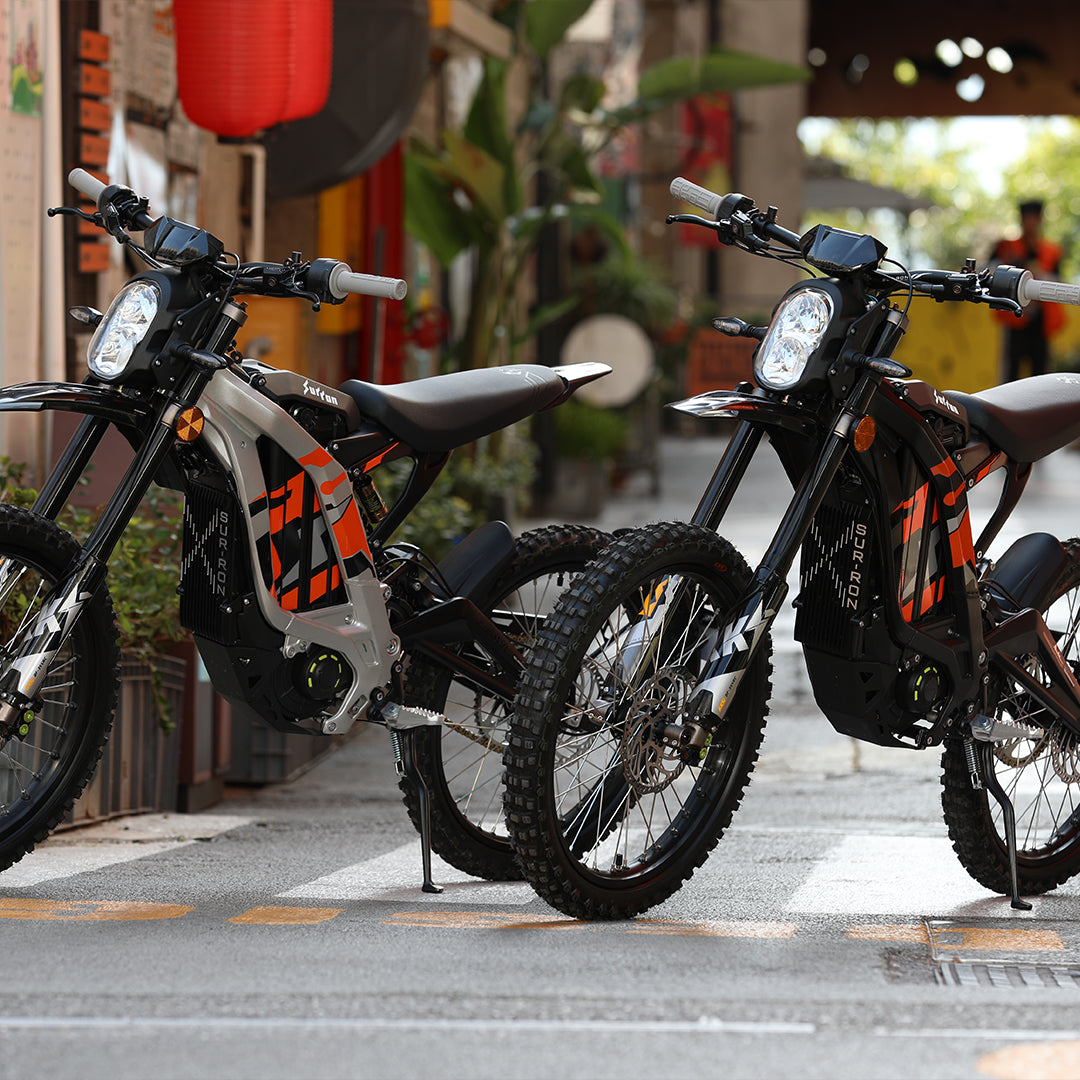

SURRON LIGHT BEE L1E
SURRON L1E is intended for use on public roads and contains a full-fledged headlight, brake light, turn signals, a dashboard, mirrors, and an anti-theft lock.
Specifications:
ORIGINAL DESIGN
- G3 Curved frame design
- The total weight of the main frame of the rear pendulum is 7.8 kg
- Forging press 6000 tons
- The frame is made of aviation aluminum with powder coating
- Tested by strict quality standards, using advanced industry technologies
SUR-RON ENGINE
- High-performance engine
- Engine power 5400 W
- Engine torque 32 Nm
- 0-80 Km/h in 6.02 sec
- The bike can climb uphill with an angle of more than 50 degrees
- Degree of protection from water IP55
- Active engine braking system
- Recuperation is the function of recharging the battery with an idling engine
THE BATTERY
- Minimum charging time
- Removable battery
- Battery capacity 32Ah
- Working voltage 60V
- Battery weight 11 kg
- Power reserve up to 100 km
- Charging time 3-4 hours
- Panasonic Ncr 18650pf battery cells, 176 pcs.
- 4 real-time temperature sensors
- Display for charge tracking
BRAKE SYSTEM
- Shimano high-performance braking system
- Four-piston hydraulic disc brake system, stable and reliable
- All metal brake pads are durable and have low thermal conductivity
- It is characterized by high braking power and increased durability
- Robust design that provides excellent braking performance when riding in a variety of styles
- Durable streamlined main cylinder
- 4-piston caliper for confidence on difficult tracks and the pleasure of riding
- Heat-insulated pistons for stable braking and reduced pad wear
- One-way oil supply to the caliper and pumping with a funnel for quick and convenient maintenance of the brake hydraulic line
6.02 s
0-80 km/h
80 km/h
Top Speed
47 kg
Ultra lightweight Design
Product specification
For Light Bee L1E Enthusiasts
- Motor Type: PMSM
- Weight / Motor External Diameter: 7.0kg / 180mm
- Motor Axial Length: 130mm
- Peak Efficiency: 95.60%
- Cooling Method: Air-Cooled
- Controller Type: X Version Sine Wave
- Dimensions: 240mm x 110mm x 50mm
- Peak Efficiency: 98.50%
- Power Modes: Eco and Sport
- Rated Voltage: 60V (DC)Rated
- Power / Peak Power: 3,000W / 6,000W
- Motor Shaft Output Torque @ 1000RPM: 35.40NmRated
- Rotation Speed: 4300rpmPeak
- Efficiency: 97.8%Range of
- Efficiency (≥80): 1.4Nm – 21.5Nm
• Road Legal: Yes
- Gear Ratio: 1:7.6
- Transmission: Primary Belt & 420 Drive Chain
- Battery: 60V 40Ah Lithium Battery with 176 Panasonic Cells
- Battery Life: 500 Cycles (reduces thereafter)
- Battery Charge Indicator: Integrated LCD Display
- Charger: 10A
- Charging Time: 2.5-3.5 Hours
- USB Connection: Single USB-2.1 A Socket
- Speedometer: LCD Digital Speedometer
- Headlight & Rear Light: LED
- Chassis & Swingarm: Forged Aluminum
- Chassis Surface & Colour Processing: Anodic Oxidation
- Front Suspension: KKE or DNM, Adjustable for Preload & Rebound
- Rear Shock Absorber: KKE or DNM Shock with TR Suspension Link System, Adjustable for Compression & Rebound
- Wheel Type & Size: 19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs
- Tire Size: 70/100-19 Front/Rear
- Max Range: 100km @ 32km/h depending upon terrain
- Net Weight: 47kg (Plus Battery
- Max Load: 100kg (220 lbs.)
- Max Climbing Angle: 45 degrees
- Rear Sprocket: 48T
- Side Stand: With Kill Switch
- Vehicle Dimensions: 1,870mm x 780mm x 1,040mm
- Minimum Ground Clearance: 270mm
- Wheelbase: 1,260mm
- Seat Height: 84-88cm
