SURRON STORM BEE

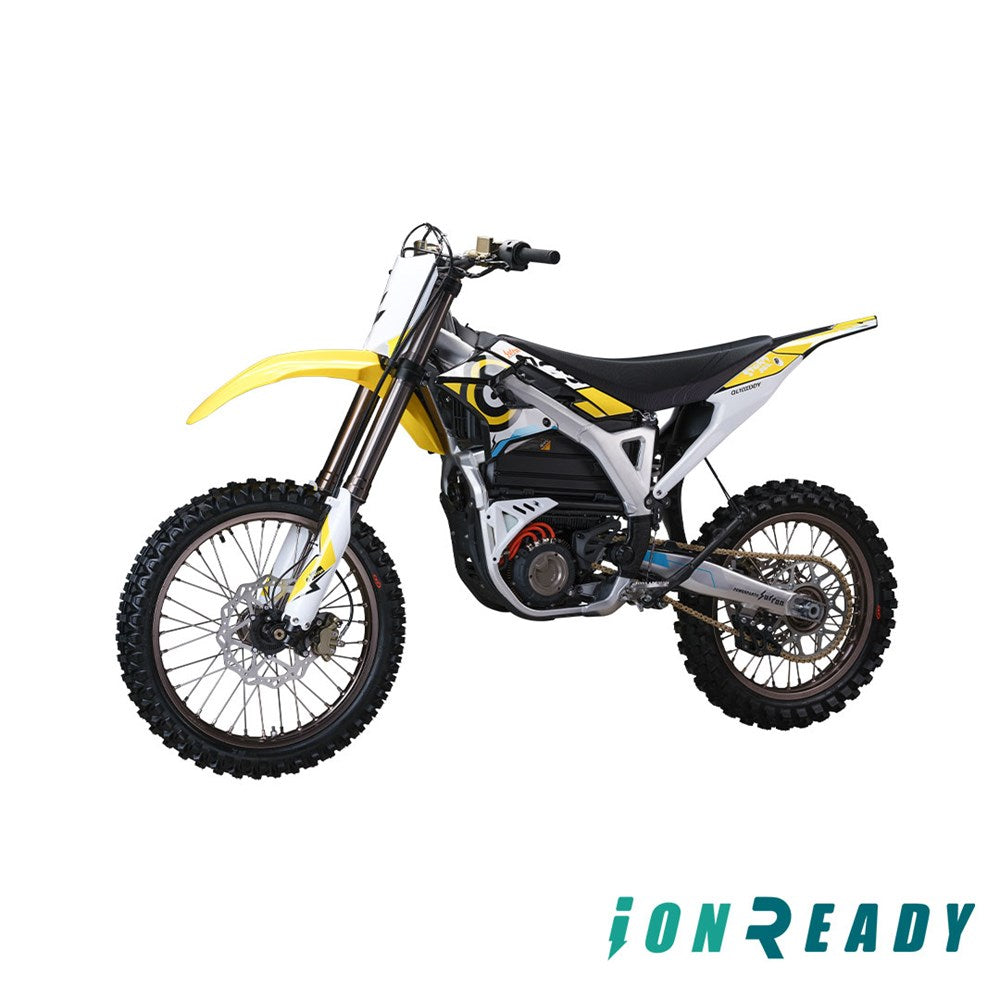

Surron Storm Bee F (off road, 104v55ah ) Grey
Surron Storm Bee F (off road, 104v55ah ) Grey
The Surron Storm Bee F (Off Road) has a 105km range, 90V/48AH-SONY VTC battery cell, 110km/h top speed and a 22.5KW maximum output power.
Features :
Wheel base: 1430mm
Carrying capacity: 120kg
Front fork travel: 290mm
Rear shock/wheel travel: 115/290mm
Power system: Mid-drive BLDC motor + FOC sine wave controller
Rated power: 10KW
Maximum power: 22.5KW
Maximum torque: 520N.m
Top speed: 110km/h
Range: 100km (@50km/h)
Battery type: 90V/48Ah lithium-ion removable battery pack
Charge time: 4h
Frame design: Aluminium forged frame
Riding mode: Eco/Rain/Sports mode + 'Turbo' mode
Dimensions: 2120mmx805mmx1265mm
Ground clearance: 335mm
Seat height: 940mm
Dry/Curb weight: 95kg/127kg
Front tyre: 80/100-21 off road tyre
Rear tyre: 100/90-18 off road tyre
Assistance functions: ASR+BERS
120 km
@ 50km/h
110 km/h
Top Speed
4 Hours
Charge Time
ASR
The riding traction control system is independently developed by SUR-RON. It is a multi-level adjust-able system and can be adjusted easily during riding to adapt to variety road conditions, to obtain maximum grip at all time and make cornering more secure.
Turbo Mode
The riding traction control system is independently developed by SUR-RON. It is a multi-level adjust-able system and can be adjusted easily during riding to adapt to variety road conditions, to obtain maximum grip at all time and make cornering more secure.
Reverse Gear
Reverse assistant is a complex feature in dirt bike but comes as stand-ard in the storm bee. This feature makes it easier to manoeuvre in the limited space no matter you are in city or wild.
Riding Mode (Sports/Eco/Rain)
Turn on the sports mode makes the storm bee much more aggressive. Power just keeps storming out and ready to experience the purest STORM BEE
Limited the power output in the most efficient area, eco mode will maximize the range of the STORM BEE. No more range anxiety, enjoy your riding only.
The power output of the STORM BEE is more gentle and smoother while the asr activate more frequently, prevent the rear wheels slipping on wet and slippery roads, makes your ride safe on the road.
Limited the power output in the most efficient area, eco mode will maximize the range of the STORM BEE. No more range anxiety, enjoy your riding only.
Transmission Batio Setting
The transmission ratio can be adjusted between 0.7 to 1.5, adjust the transmission ratio according to different wheels and sprocket size to make sure the speedometer always shows the correct speed.
Storm Bee X
Surron's First Full-Size Electric Dirt Bike
Product specification
Let's Look at the Storm Bee more extensively.
• Motor Type: Liquid cooled, brushless electric (BLDC) motor
• Rated Voltage: 104V (DC)
• Rated Power/Peak Power: 10,000W/22,500W
• Controller Type: FOC Sine Wave
• Peak Torque: 520 Nm (383 ft-lbs)
• Top Speed: 110 km/h (68 mph)
• Max Range: 120 km @ 50 km/h (75 miles @ 31 mph), depending upon terrain)
• Battery: 104V/55Ah Lithium Ion
• Charger: 10A
• Charging Time: 4 Hours (0-100%)
• Drive: 530 O-ring Chain
• Riding Modes: Sport, Rain, Eco, Turbo
• Rider Aids: ASR (Acceleration Slip Reduction, a.k.a. traction control), BERS (Brake Energy Regenerative System)
• Reverse Gear: Button-activated
• Front Suspension: 47 mm inverted fork, 290 mm travel, adjustable compression & rebound
• Rear: Fully adjustable monoshock, 290 mm wheel travel
• Front Wheel: 21" wire-spoked rim, 80/100-21 off-road tire
• Rear Wheel: 18" wire-spoked rim, 100/90-18 off-road tire
• Curb Weight: 127 kg (280 lbs)
• Max Load: 100 kg (220 lbs)
• Vehicle Dimensions: 2,080 mm x 805 mm x 1,240 mm (81.9 x 31.7 x 48.8”)
• Minimum Ground Clearance: 310 mm (12.2")
• Wheelbase: 1,430 mm (56.3")
• Seat Height: 940 mm (37")
