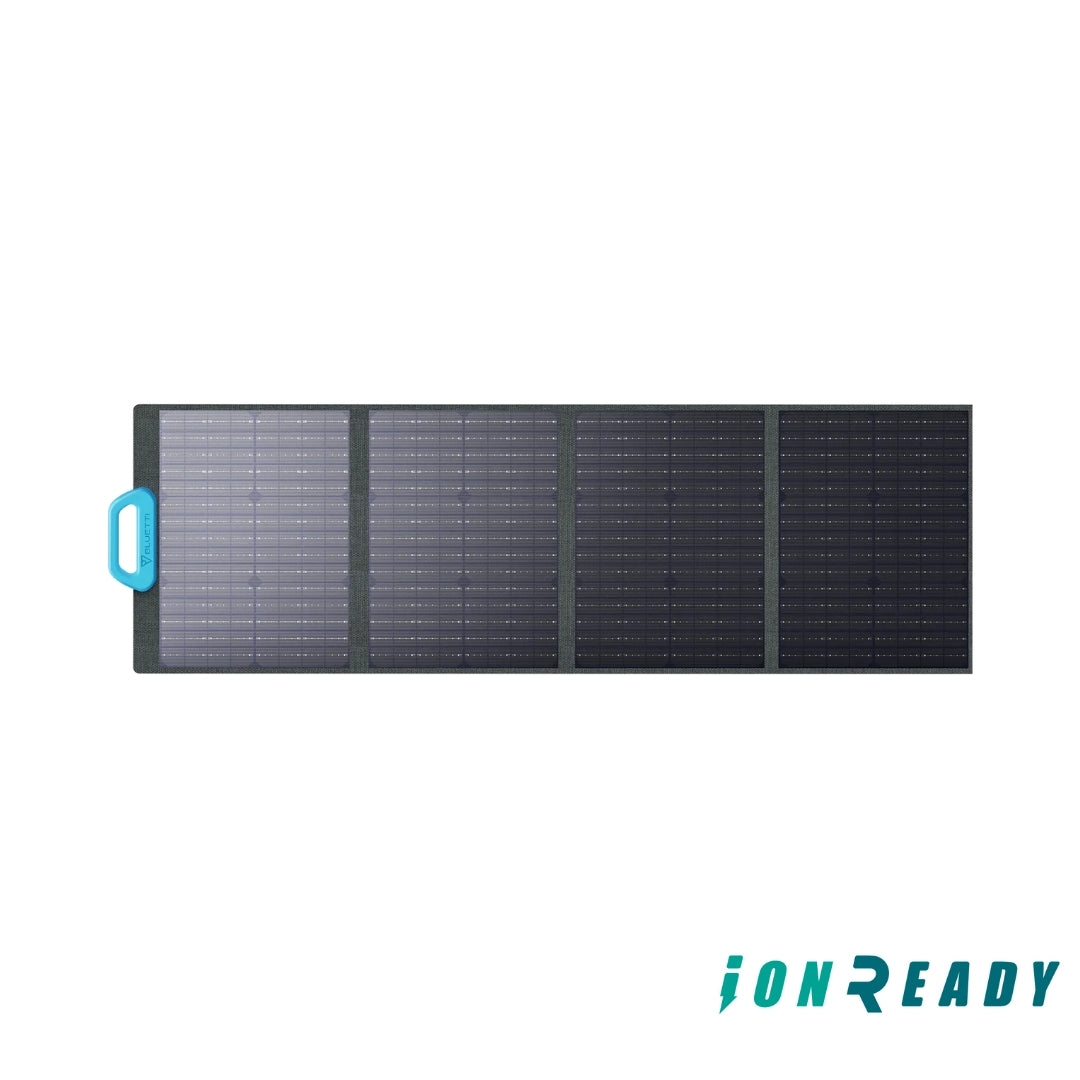

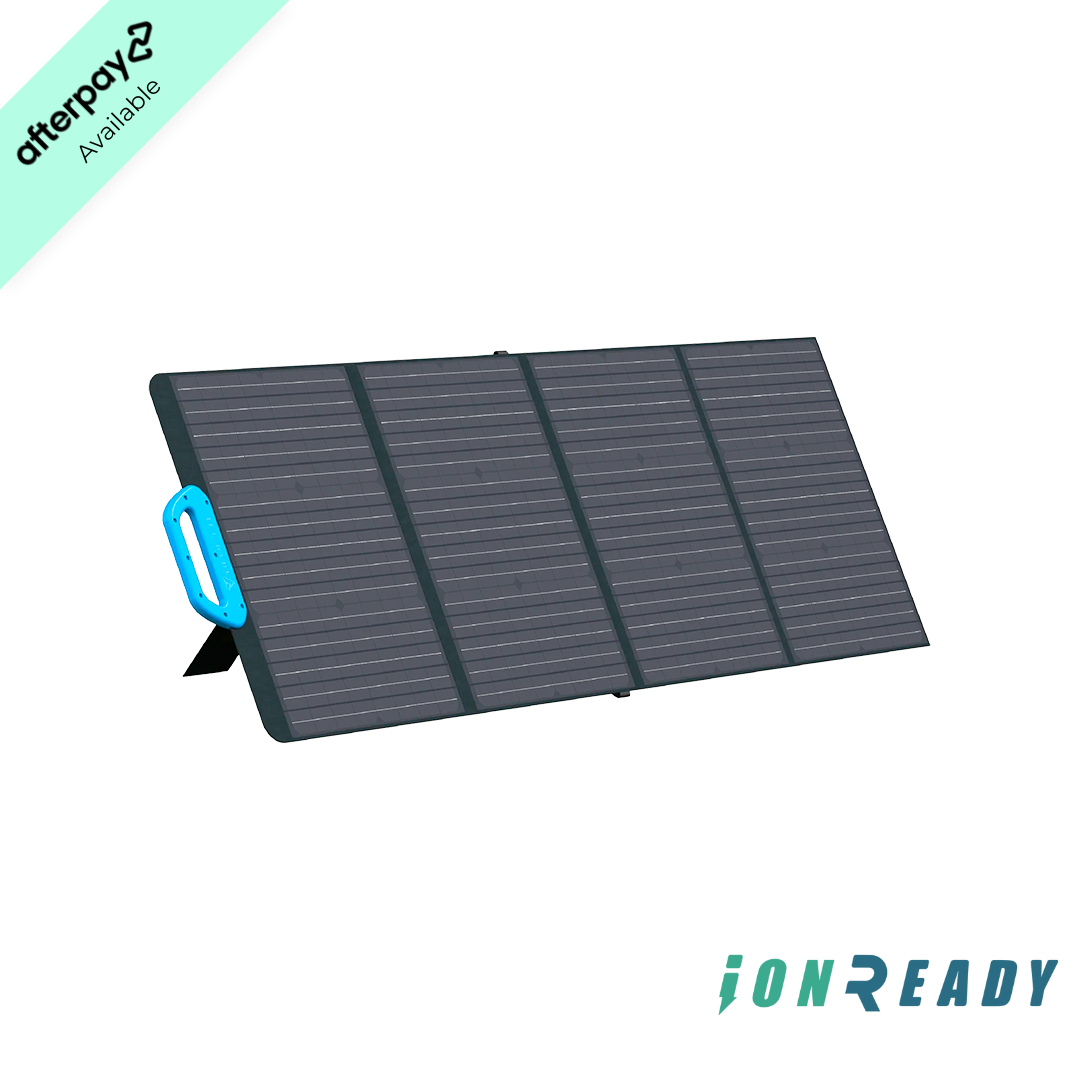

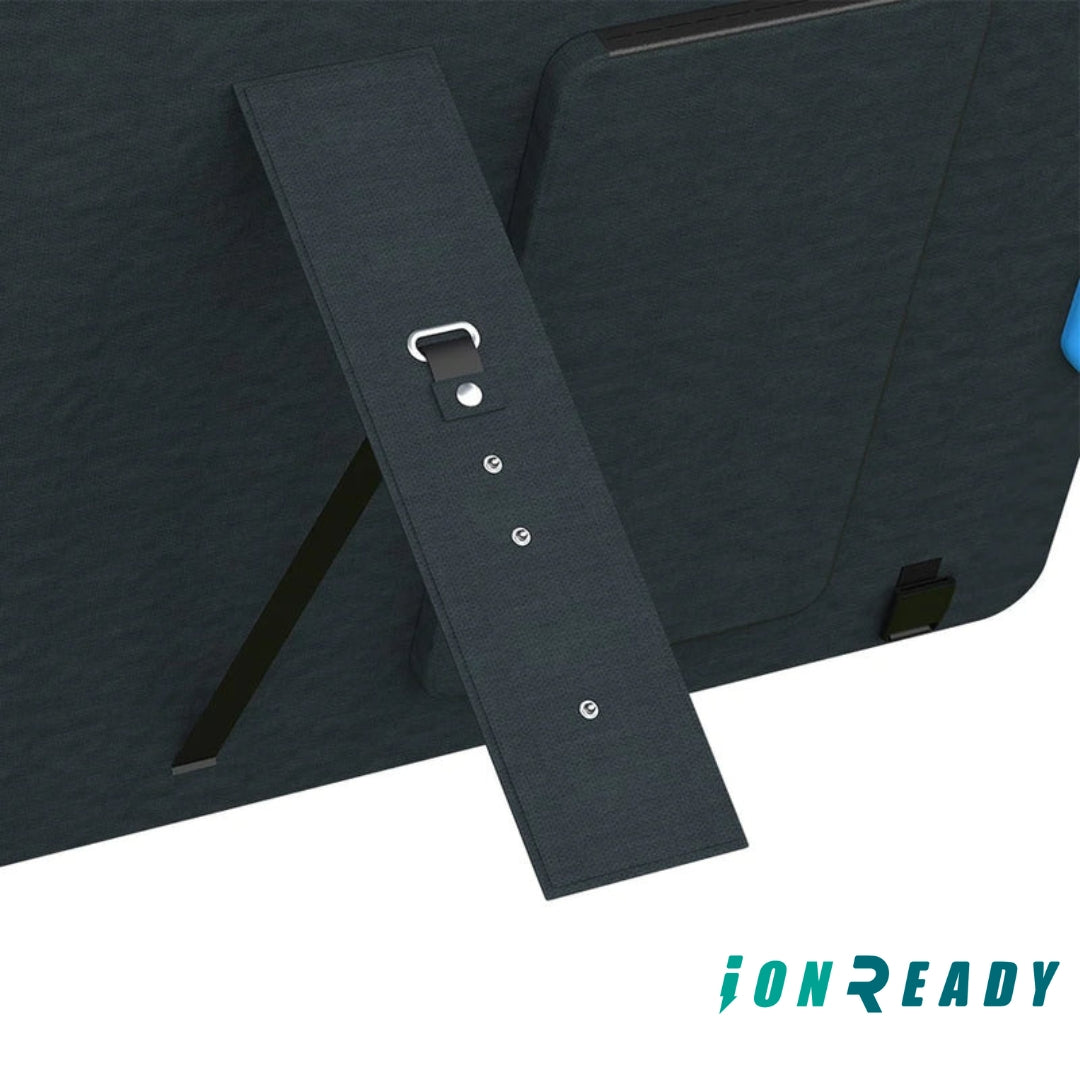

BLUETTI PV120 Solar Panel, 120 Watt for Portable Power Station EB3A EB55 EB70S AC2A AC70 AC180 AC200L AC200MAX AC300, Foldable Solar Charger with Adjustable Kickstands for RV, Camping, Blackout
• In stock and ready to ship
• 12 Months Warranty
• Monocrystalline Solar Cells With Up to 23.4% Efficiency
• Long-lasting ETFE Coating

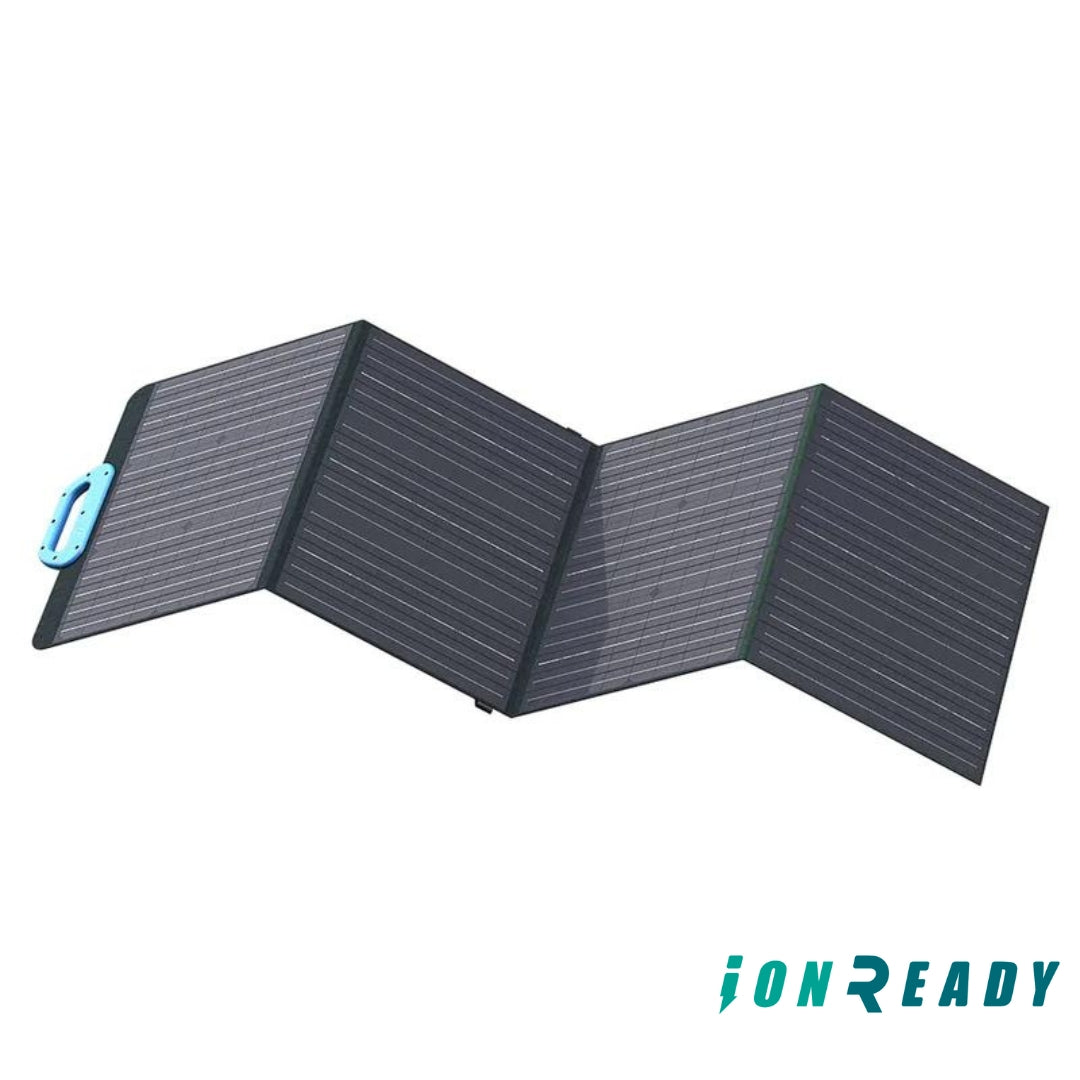

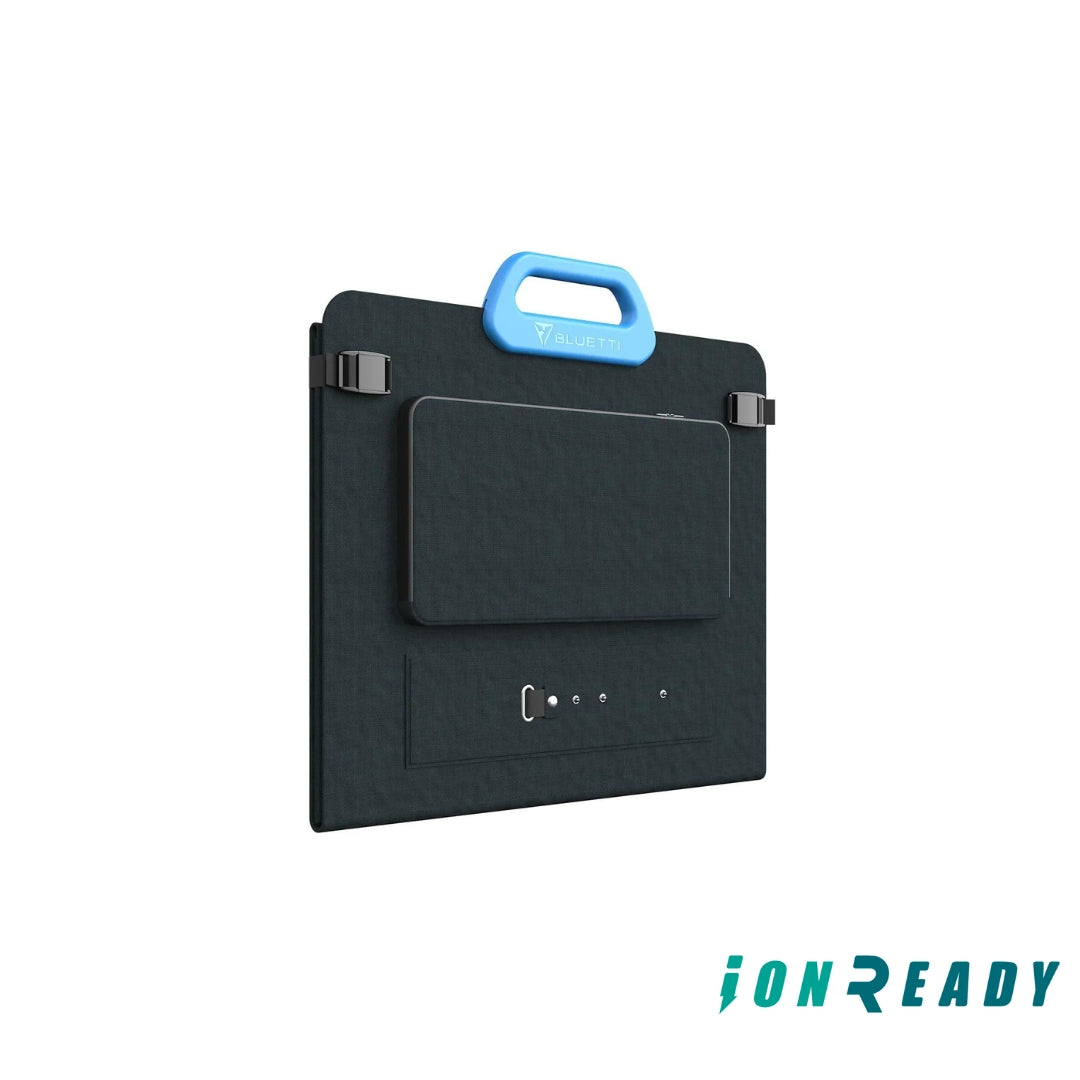

• Foldable & Portable
• Compatible With Most Solar Generators with MC4 Connectors
Receive your items within 1–3 business days across New Zealand. For wholesale orders, please contact us to arrange customised shipping solutions.
Features
Solar Charge Anywhere
Connect it and leave it. BLUETTI 120W solar panel is set to keep your solar generators juiced as long as there is sunlight available.
23.4% High Efficiency
Built with monocrystalline solar cells, the PV120 can convert up to 23.4% of sunlight into solar energy, charging your solar generators even in bad weather.
Built to Last
The ETFE coating and IP65 junction box are designed to withstand any scratches and watersplash, perfect for camping, fishing, hiking and much more.(Prevent exposure to rain or no soak in water)
Portable in Every Way
Tech Specs
| POWER | Power: | 120W |
| Lamination: | ETFE (Ethylene tetrafluoroethylene) | |
| Type: | LiFePO4 (Lithium Iron Phosphate) | |
| Cell Type: | Monocrystalline Silicon | |
| Voltage at Max Power(Vmp): | 19.6V | |
| Current at Max Power (Imp) | 6.1A | |
| Open Circuit Voltage (OCV) | 24.4V | |
| Short Circuit Current (Isc) | 6.43A |
| GENERAL | Connector: | Standard MC4 Connector |
| Weight: | 5.7kg (12.57lbs) | |
| Dimensions (Unfolded): | 21 × 65in (53.3 × 165.2cm) | |
| Dimensions (Folded): | 21 × 18.5in (53.3 × 47cm) | |
| Temperature: | 14-149°F (-10-65°C) | |
| Best Working Temperature: | 77°F (25°C) | |
| Cable Length: | 118in (3m) | |
| Certification: | FCC, CE, ROHS | |
| Warranty: | 12 Months |
| DOWNLOAD MANUAL HERE |
Solar Charge Anywhere
Connect it and leave it. BLUETTI 120W solar panel is set to keep your solar generators juiced as long as there is sunlight available.
23.4% High Efficiency
Built with monocrystalline solar cells, the PV120 can convert up to 23.4% of sunlight into solar energy, charging your solar generators even in bad weather.
Built to Last
The ETFE coating and IP65 junction box are designed to withstand any scratches and watersplash, perfect for camping, fishing, hiking and much more.(Prevent exposure to rain or no soak in water)
Portable in Every Way
| POWER | Power: | 120W |
| Lamination: | ETFE (Ethylene tetrafluoroethylene) | |
| Type: | LiFePO4 (Lithium Iron Phosphate) | |
| Cell Type: | Monocrystalline Silicon | |
| Voltage at Max Power(Vmp): | 19.6V | |
| Current at Max Power (Imp) | 6.1A | |
| Open Circuit Voltage (OCV) | 24.4V | |
| Short Circuit Current (Isc) | 6.43A |
| GENERAL | Connector: | Standard MC4 Connector |
| Weight: | 5.7kg (12.57lbs) | |
| Dimensions (Unfolded): | 21 × 65in (53.3 × 165.2cm) | |
| Dimensions (Folded): | 21 × 18.5in (53.3 × 47cm) | |
| Temperature: | 14-149°F (-10-65°C) | |
| Best Working Temperature: | 77°F (25°C) | |
| Cable Length: | 118in (3m) | |
| Certification: | FCC, CE, ROHS | |
| Warranty: | 12 Months |
| DOWNLOAD MANUAL HERE |
PV120 for Your Everyday Needs
Sustainable Living
FAQ
#1 What can this PV120 charge?
A: The PV120 can work with most power stations on the market,
1pcs BLUETTI 120W solar panel can quickly charge the BLUETTI EB55 within 5.7-6.2 hrs.
1pcs BLUETTI 120W solar panel can quickly charge the BLUETTI EB70 within 7.5-8 hrs.
2pcs BLUETTI 120W solar panels can quickly charge the BLUETTI EB150 within 7.8-8.3 hrs by connecting them in series.
3pcs BLUETTI 120W solar panels can quickly charge the BLUETTI AC200P within 7-7.5 hrs by connecting them in series.
3pcs BLUETTI 120W solar panels can quickly charge the BLUETTI AC200Max within 7.2-7.7 hrs by connecting them in series.
6pcs BLUETTI 120W solar panels can quickly charge the BLUETTI AC300+*2B300 within 10.5-11 hrs by connecting them in parallel.
Besides the BLUETTI power station (AC200P, EB150, EB55, EB 70, AC200MAX, AC300), it can also be used with other brands If you have your own adapter (need to buy adapter yourself).
Friendly Note: which means that if the total power of your devices exceeds 700W.
#2 Is It Waterproof?
Yes, IP65 is rated for junction box, but do not expose the solar panels to rain or snow.
#3 Can I install it on the roof?
No.
#4 What is the difference between the PV120 and SP120?
Under the same condition, BLUETTI PV series solar panels produce more power from limited sunlight.*
* Conclusion from BLUETTI Lab, for reference ONLY.
#5 BLUETTI PV120 compatibility.
Most solar power stations on the market, and one PV120 solar panel is ideal for BLUETTI EB55/EB70/EB3A portable power stations.
#6 How do I choose solar panels for my solar generator?
Review the PV input requirements of the solar generator.
Review the output specifications of solar panels.
Calculate the total voltage, current, and wattage of solar panels.
Consider the solar input connectors.
#7 Can I use different size solar panels?
No. Your solar panels should be the same type and rating from one brand. For example, two PV120 to charge BLUETTI AC200P is acceptable, and one PV120 + one SP120 is unacceptable.
#8 Does the panel have any USB ports you can directly plug into?
No. BLUETTI PV120 only has MC4 connectors.
#9 How do I maximize the efficiency of solar panels?
These steps will help you get the most out of your solar panels:
1. Set up your panels correctly: The orientation as well as the angle it tilts at should be right.
2. Avoid shadow areas: Any amount of shadow will affect solar panel production.
3. Keep your panels clean: Dirt or debris reduces the panel’s efficiency.
4. Don’t get panels too hot: Good air circulation or a cool atmosphere around panels will help.
