BLUETTI EP500Pro Solar Power Station | 3000W 5100Wh LiFePO4 Battery Fast Charge Solar Generator for Outdoor Camping

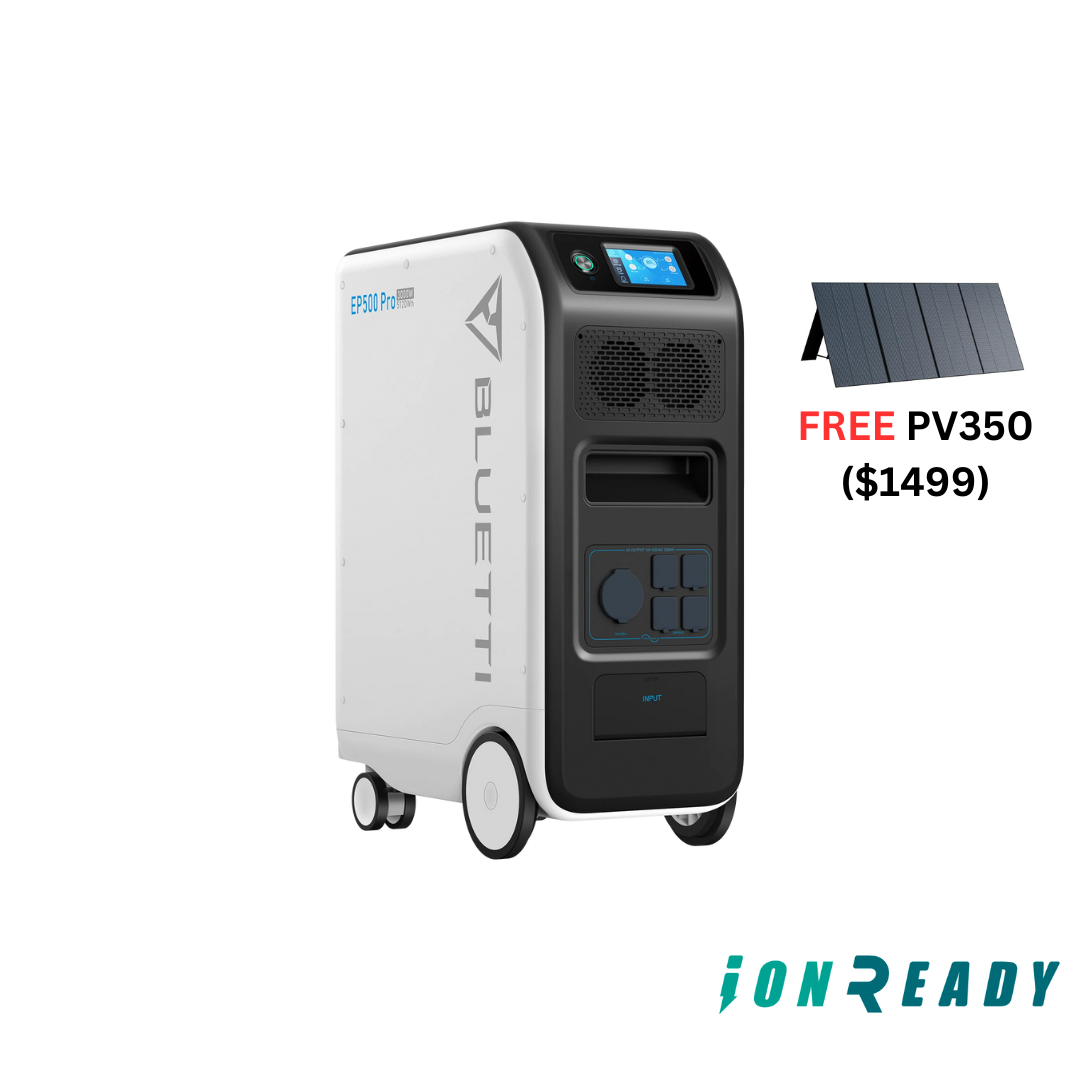

• FREE PV350 Solar Panel (worth $1499)
• 5120Wh LiFePO4, 3500+ Cycles to 80% Capacity
• EP500Pro: 3000W Pure Sine Wave Output
• In-grid UPS Mode&Flexible UPS Mode (24/7)
• Movable Power Station
• Off-grid Energy Storage
• Multiple Devices Can Be Loaded Simultaneously
• Flexible Recharging Way To Keep Your EP500 Always On
• App Remote Control
• Smart Touchscreen
• 5-year Warranty
Pickup available at Unit 3/76 Porana Road
Usually ready in 24 hours
BLUETTI EP500Pro Solar Power Station | 3000W 5100Wh LiFePO4 Battery Fast Charge Solar Generator for Outdoor Camping
EP500Pro (Free PV350) | 3000W, 5120Wh, 350W Solar Kit
Unit 3/76 Porana Road
unit 3/76 Porana Road
Hillcrest
AUK
Auckland 0627
New Zealand
Free Shipping
5 Years Hassle-Free Warranty
After Sales Customer Support
Price Match Guarantee
Bluetti EP500Pro Specifications
• Capacity: 5100Wh
• AC Rated Power: 3000W
3000W<load<3750W,2min
3750W<load<4500W, 5s
4500W<load<6000W, 500ms(peak 6000W)
• Net Weight: ≈83kg (182lbs)
• Dimensions: 580*300*760mm (22.8*11.8*29.9in)
• Battery Capacity: 5100Wh
• Battery Cell Type: LiFePO4
• Rated Life Cycle: 3500+ Cycles to 80% Capacity
• Charge Temperature: 0°C ~ 40°C (32°F ~104°F)
• Mobile APP: Bluetti App (Wifi/Bluetooth)
• Storage Ambient Temperature:-25°C ~ 40°C (-13°F ~104°F)
• Working Environment humidity: 10-90%
• Certification: UL2743, UKCA, RCM, PSE, FCC, CE
• Warranty Perior: 60 Months
• Color: Elegant White
• AC Input: 3000W Max
• PV Input or T500 Input: 2400W Max
12-150VDC, 12Ax21
2V/24V,8.2A

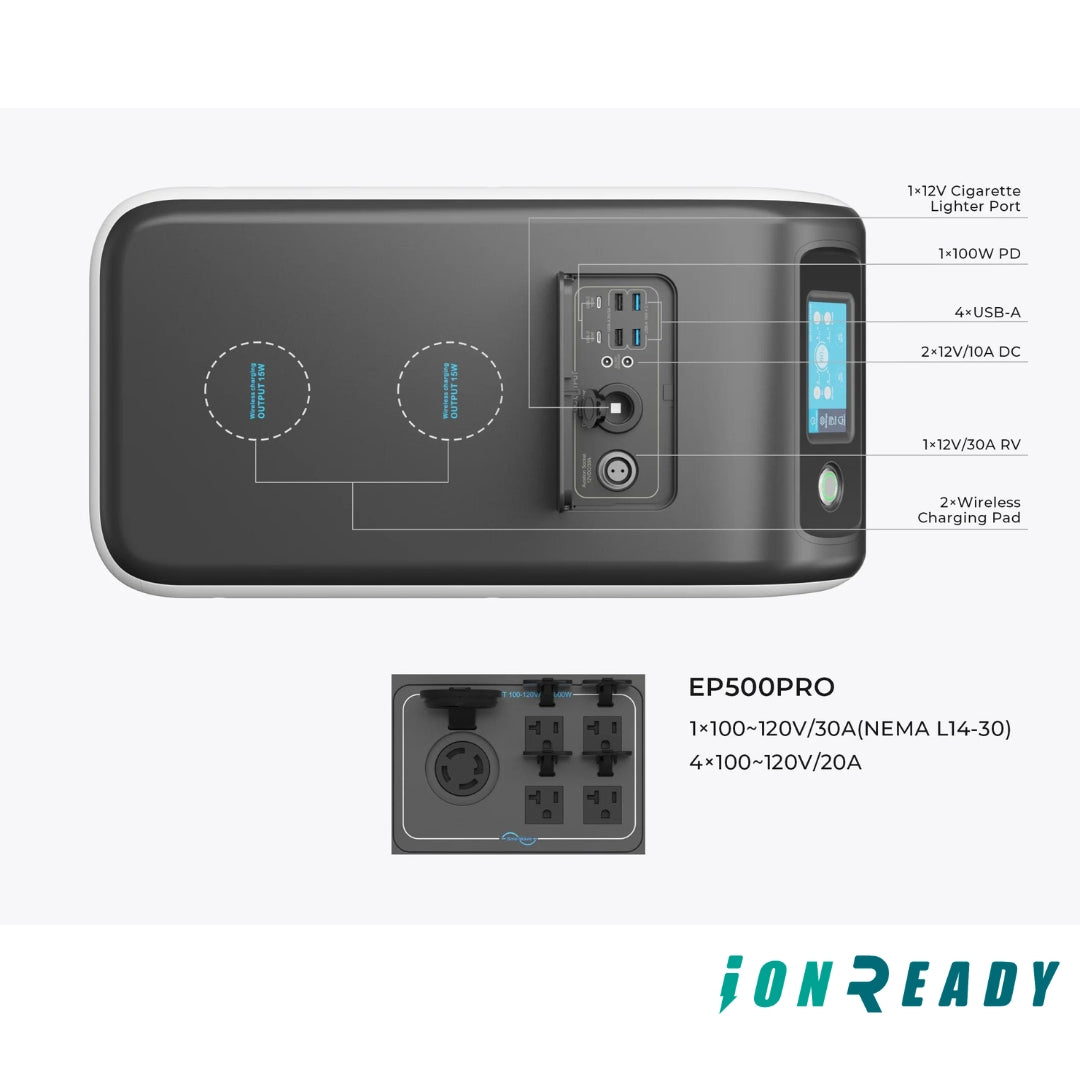

• USB-C: 2*100W

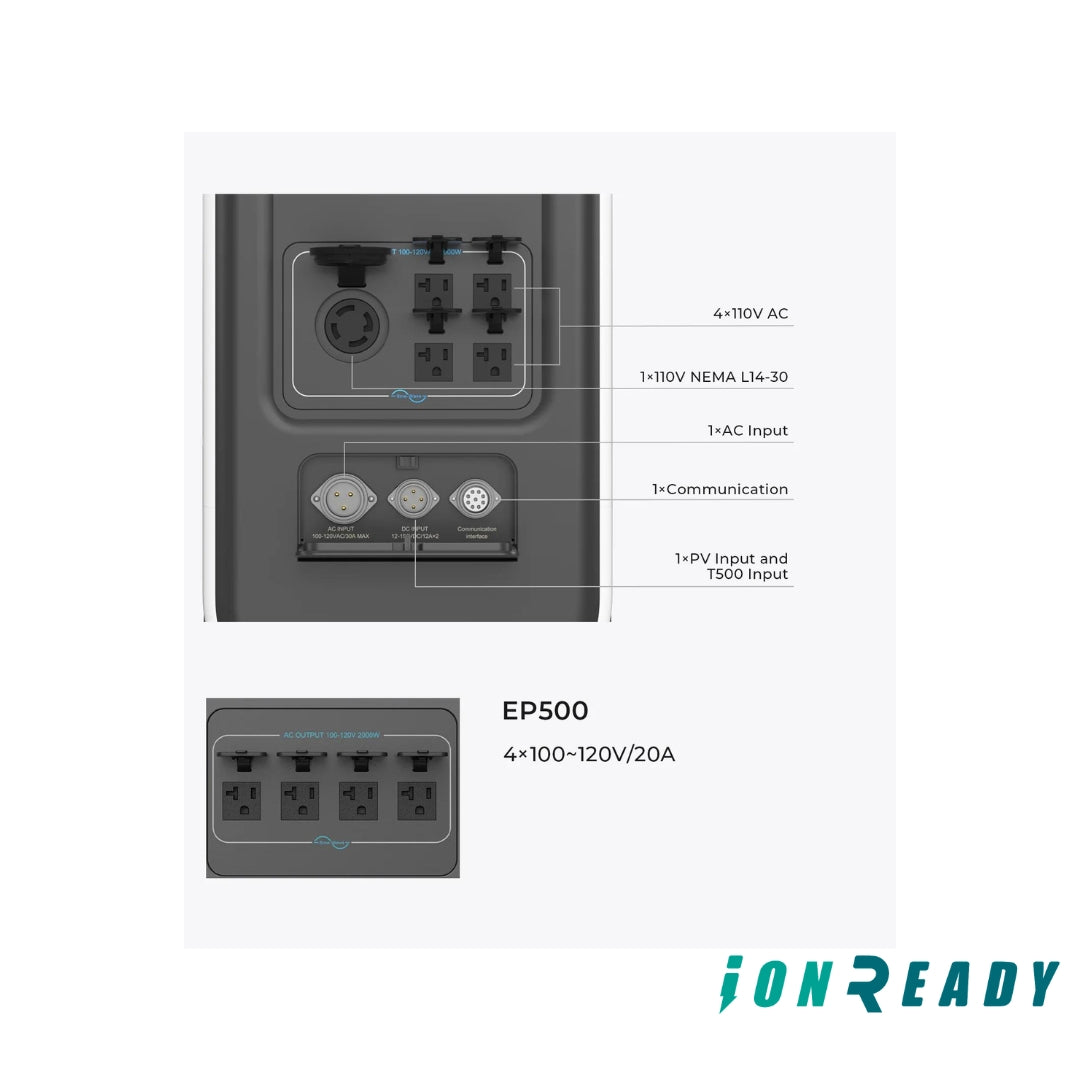

• AC: 220-240VAC*3
• USB-A: 2*Quick Charging, 36W Total, 2*5VDC, 3A Total
• Cigarette Lighter: 1*12VDC, 10A
• RV (Aviation Port): 1*12VDC, 30A
• DC 5521: 2*12VDC, 10A Total
• Wireless Charging Pad: 2*5/7.5/10/15W
Download the USER MANUAL HERE.
All-in-one Backup Power Station
Introducing the BLUETTI EP500PRO, an innovative all-in-one backup power station equipped with a revolutionary 5100Wh LiFePO4 battery pack and a 3000W rated pure sine wave AC inverter. This state-of-the-art power solution provides you with the capability to energize your entire party, family camping excursion, cabin workshops, or even sustain your entire household for a day or two in case of an unforeseen power outage. With up to 15 outlet sources, it effortlessly powers a wide range of devices, from laptops and air conditioners to electric vehicles, ensuring uninterrupted functionality.
Safe, Smart, And Continuously Evolving
"The EP500PRO boasts an advanced Battery Management System and utilizes LiFePO4 chemistry, providing unparalleled safety and durability. Featuring a built-in dual-core microcomputer and internet connectivity, its firmware can be conveniently updated through your internet connection. Remember, there's always room for improvement!
Seamless UPS Backup
When the grid goes down, the EP500PRO becomes your home's energy source for essential loads, sans fuel, maintenance, or noise. It pairs with up to 1200W solar input for quick recharging. Say goodbye to power worries with the BLUETTI EP500PRO.
Can Be Used in Variety of Ways
EP500Pro is our most flexible power station. It can serve as Home Backup, Camping Essentials, UPS for Computers and so much more.
EP500Pro: Everything You Need to Know
FAQ
#1 Can it connect to Bluetti B230/B300 expansion batteries?
Yes. You can connect it with B230/B300 battery with the DC input cable and P090D to MC4 cable*.
* Sold separately.
#2 Does EP500Pro support App Control?
Yes. Once connected via WiFi or Bluetooth, the BLUETTI App will enable you to control the EP500ProPro remotely, like switching the working mode and upgrading the firmware.
#3 Can I use EP500Pro as a UPS?
Yes. It supports four UPS modes:
1. Standard UPS.
2. Time Control UPS (Pay less for higher electricity consumption).
3. PV Priority UPS (Recommended for regions with sufficient solar energy).
4. Customized UPS.
#4 How do I connect this to my home main panel?
BLUETTI recommends a competent and trained licensed electrician undertake the task.
Connect the wires of critical equipment from your house electric panel to BLUETTI Smart Home Panel*.
Then connect EP500Pro to the Smart Home Panel.
* Sold separately.
#5 What is the UPS switching time?
There are two types of working conditions of UPS for EP500Pro system.
1) No delay for online UPS;
2) 20ms from standby UPS.
#6 What is the maximum input charging power of Bluetti EP500Pro?
4,000W Max.
#7 How can it reach 3000W AC recharing?
Plug it to a 30A wall socket with the 30A AC charging cable*.
* Sold separately.
#8 What kind of solar panels should I choose for EP500Pro?
PV input requirements for EP500Pro:
Open Circuit Voltage: 12-150V
Input Power: 2,400W Max.
Include MC4 connectors.
Highly Recommended:
6x BLUETTI PV120: ≈8hrs*.
5x BLUETTI PV200: ≈6hrs*.
3x BLUETTI PV350: ≈5.5hrs*.
* For reference ONLY.
#9 Can I use my solar roof to charge my EP500Pro?
Yes, but please note your solar roof should have:
1. NO micro-inverter
2. an open-circuit voltage of 12-150V
3. MC4 connectors
However, when the OCV falls in 150-550V, you can also use BLUETTI D300S* to step down the voltage and achieve solar charging.
* Sold separately.
#10 Can I connect two EP500Pro together for more power (240V Split Phase Bonding)?
Yes. With the Fusion Box (P030A), you can connect two EP500Pro in series for 240V/6,000W output.
#11 Can EP500Pro connect with EP500?
No. Only EP500 to EP500, or EP500Pro to EP500Pro is acceptable.
#12 Can it charge and discharge at the same time?
Yes.
#13 How do I know whether my appliance can work well with the EP500Pro?
Calculate the total wattage of your devices. EP500Pro should work if the load doesn't exceed its rated 3,000W.
#14 How long can it run my device?
Running time = Battery capacity × DoD × η ÷ Device rated power
DoD refers to Depth of Discharge and η is local inverter efficiency.
For EP500Pro, both DoD and η are 90%. If you run a 1,000W microwave oven with it, the running time will be:
5,100Wh × 90% × 90% ÷ 1,000W ≈ 4.1hrs Note:
1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
2) The above data is for reference ONLY.
#15 Is the EP500Pro power station waterproof?
No. Also, please do NOT store it in a humid environment for a long time.
#16 When I keep the power plugged in, will EP500Pro stop charging automatically when fully charged?
Yes. And when the SOC is less than 100%, EP500Pro will automatically charge again without damage to the battery.
#17 Is it possible to replace the built-in battery?
No. If the internal battery pack is faulty or even dead, please contact us at sales@ionready.co.nz
