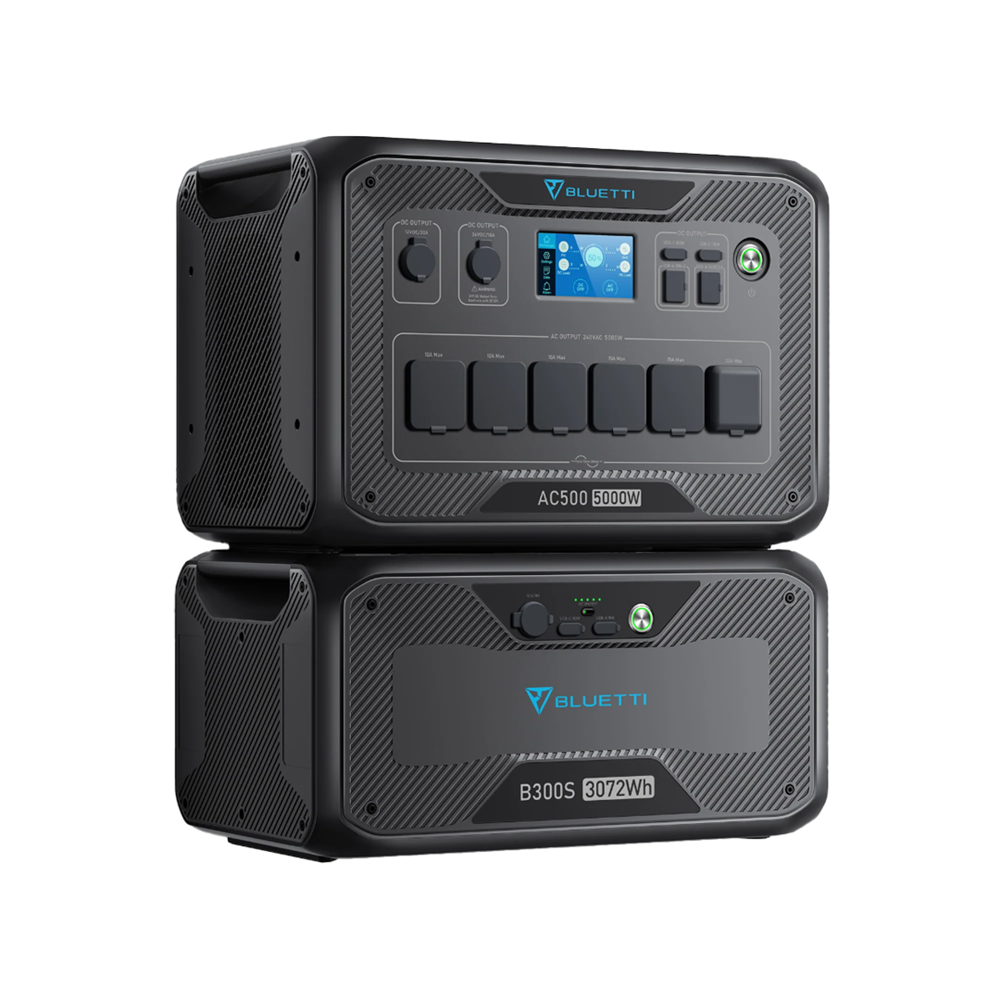

BLUETTI AC500 + B300S Home Battery Backup
• 5,000W Rated Power (10,000W Surge)
• Expandable Capacity From 3,072Wh to 18,432Wh
• LiFePO4 Battery With 3,500+ Life Cycles to 80%
• LiFePO4 Battery with 2,500+ Life Cycles to 80%
• Smart APP Control (WiFi & Bluetooth Connection)
• 240V/10KW Split Phase System With 2* AC500 & 2* B300S (Max. 36.8KWh)
• 6 Ways to Recharge (AC/Solar/Car/Generator/Lead-acid Battery/Dual Charing (AC/AC+Solar)
• 16 Versatile Outlets for 99% Devices
Pickup currently unavailable at Unit 3/76 Porana Road
BLUETTI AC500 + B300S Home Battery Backup
Default Title
Unit 3/76 Porana Road
unit 3/76 Porana Road
Hillcrest
AUK
Auckland 0627
New Zealand
BLUETTI AC500 + B300S Home Battery Backup
OUTPUT
- AC Outlets: 3 x 240V/10A Outlets
2 x 240V/15A
1 x 240V/32A
5,000W In Total
- Inverter Type: Pure Sine Wave
- Surge Power: 10,000W
- USB Port: 2 x 5V/3A USB-A
2 x 18W USB-A
2 ? USB-C 100W Max.
- DC Outlets: 1 x 12V/30A (RV Outlet)
1 x 24V/10A (Car Outlet)
*All regulated.
- Wireless Charging Pad: 2 x 15W Max.
INPUT
- AC Input: 4,500W Max. (W/ 1*B300S), 5,000W Max. (W/ 2 or more B300S).
- Solar Input: 3,000W Max. VOC 12-150VDC, 15A
- Car Input: 12/24V from Vehicle Cigarette Lighter Port
- Maximum Input: 4,500W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) AC + Solar Dual Charging
GENERAL
- App Control: Yes, WiFi, & Bluetooth Connection
- Scalability: Expandable with 6?B300S or 4?B300
- Simultaneous Charge & Discharge: Yes
- Weight: 66.2lbs (30kg)
- Dimensions (LxWxD): 20.5 x 12.8 x 14.1in (52 x 32.5 x 35.8cm)
- Operating Temperature: -4?-104? (-20?-40?)
- Storage Temperature: -13?-104? (-25?-40?)
- Certification: UL2743, UKCA, TELEC, RCM, FCC ID, CE
- Warranty: 48 Months
Free Local Shipping
1-Year Hassle-Free Warranty
After Sales Customer Support
Price Match Guarantee
Technical Specifications
Know the Technical Specifications of BLUETTI AC500 + B300S Home Battery Backup.
- AC Outlets: 3 x 240V/10A, 2 x 240V/15A, 1 x 240V/32A, 5,000W In Total
- Inverter Type: Pure Sine Wave
- Surge Power: 10,000W
- USB-C Port:2 x 5V/3A USB-A, 2 x 18W USB-A, 2 × USB-C 100W Max.
- DC Outlets:1 x 12V/30A (RV Outlet), 1 x 24V/10A (Car Outlet), *All regulated.
- Wireless Charging Pad: 2 x 15W Max.
- AC Input: 4,500W Max. (W/ 1*B300S), 5,000W Max. (W/ 2 or more B300S).
- Solar Input: 3,000W Max. VOC 12-150VDC, 15A
- Car Input: 12/24V from Vehicle Cigarette Lighter Port
- Maximum Input: 4,500W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) AC + Solar Dual Charging
- App Control:Yes, WiFi & Bluetooth Connection
- Scalability:Expandable with 6×B300S or 4×B300
- Simultaneous Charge & Discharge:Yes
- Weight:66.2lbs (30kg)
- Dimensions (LxWxD):20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm)
- Operating Temperature:-4℉-104℉ (-20℃-40℃)
- Storage Temperature:-13℉-104(-25℃-40℃)
- Certification:UL2743, UKCA, TELEC, RCM, FCC ID, CE
- Warranty:48 Months
Download the USER MANUAL HERE.
Make a difference today! Check out LAAF's latest updates.
Join BLUETTI's mission with LAAF to brighten homes and support education. For every AC300/AC500 unit purchased, we donate a solar power system to families, ensuring well-lit living spaces and equal learning opportunities for children.
Modular Solar Power System for All Needs
AC500 & B300S, the expandable power system, will definitely shift the way you harness the solar energy. It's designed to help you go through power outages, stay connected to unlimited energy wherever you are heading.
5000W Pure Sine Wave Inverter
This inverter delivers quality pure sine wave output and takes up to 10kW surge, ensuring anything you plug in will be running to its full functionality and capacity.
Charge in Any Way You Like
No matter where you are, you can charge your AC500 system at any time. With the wall outlet and solar panels plugged in, the AC500 system supports up to 8,000W impressive input rate (At least 2*B300S packs required). Get the system recharged before you pack up for the camping, and your power will be ready when you are.
Power Option for Personalization
AC500 is 100% modular and can accept up to 6×B300S (3,072Wh each) expansion battery packs, adding up to an overall capacity of 18,432Wh – Power your whole family's basic needs for DAYS either in daily use or power outages!
FAQ
#1 How fast can I charge the AC500 with a standard AC charging cable?
With this cable, you can charge the AC500 at a maximum input of 2400W.
#2 How can I get a 5000W AC input for the AC500?
Connect 2 or more B300S units to the AC500, integrate them to the main panel of your home and you're ready to charge the AC500 at the maximum 5000W AC input. Note: The maximum AC input of AC500+B300S is 4500W.
#3 How much power can I draw from the 32A AC outlet?
5000W Max. This outlet is for power-hungry appliances that require higher currents. Note: A M28 Bayonet 3-Pin Male Connector is required.Learn more.The CEE 32A outlet delivers a maximum current of 32A.
#4 Can I use AC500 alone?
No, it's 100% modular and needs to team with B300S/B300 to get its job done.
#5 What is the power consumption of AC500 when it's off/on?
11W when AC500 is on, AC and DC are off; 2. 30W when AC and DC are on.
#6 Do I need an extra cable to connect B300 and AC500?
Yes, P150D to P090D is required, you may order it separately in BLUETTI Store.
#7 How to connect AC500 to the main panel?
Low Voltage Area: Match the transfer switch and smart home panel to the main panel.
High Voltage Area: Match the transfer switch to the main panel.
#8 What is the switching time of the UPS?
20ms.
#9 Can I use third party solar panels to charge AC500?
Yes, the solar panels must meet the following conditions:
1) Total voltage: 12 - 150V
2) Total power: 3000W max.
3) With MC4 connectors.
#10 Can I use rooftop solar panel to charge AC500?
Yes, but please note that your solar roof must meet:
1. No micro-inverter
2. Open circuit voltage: 12-150V
3. With MC4 connectors
Note: When OCV exceeds 150V, you may use BLUETTI D300S* to step down the voltage to achieve solar charging.* D300S Sold separately.
#11 How long will AC500 run my device?
Running time = battery capacity x DoD x η ÷ device rated power
DoD: Depth of Discharge, η: local inverter efficiency. For AC500, both DoD and η are 90%.
If you run a 1,000W microwave oven with a AC500 + B300S combo, the running time will be 3,072Wh × 90% × 90% ÷ 1,000W ≈ 2.5 hours
Note:
1) This formula doesn't apply to inductive loads with compressors, such as refrigerators, air conditioners, etc.
2) The above data is for reference ONLY.
#12 Is AC500 waterproof?
No, please keep it in a dry place.
#13 How many B300S packs can be connected to AC500？
6
#14 Can B300S and B300 be mixed?
Yes. 4 packs in total.
