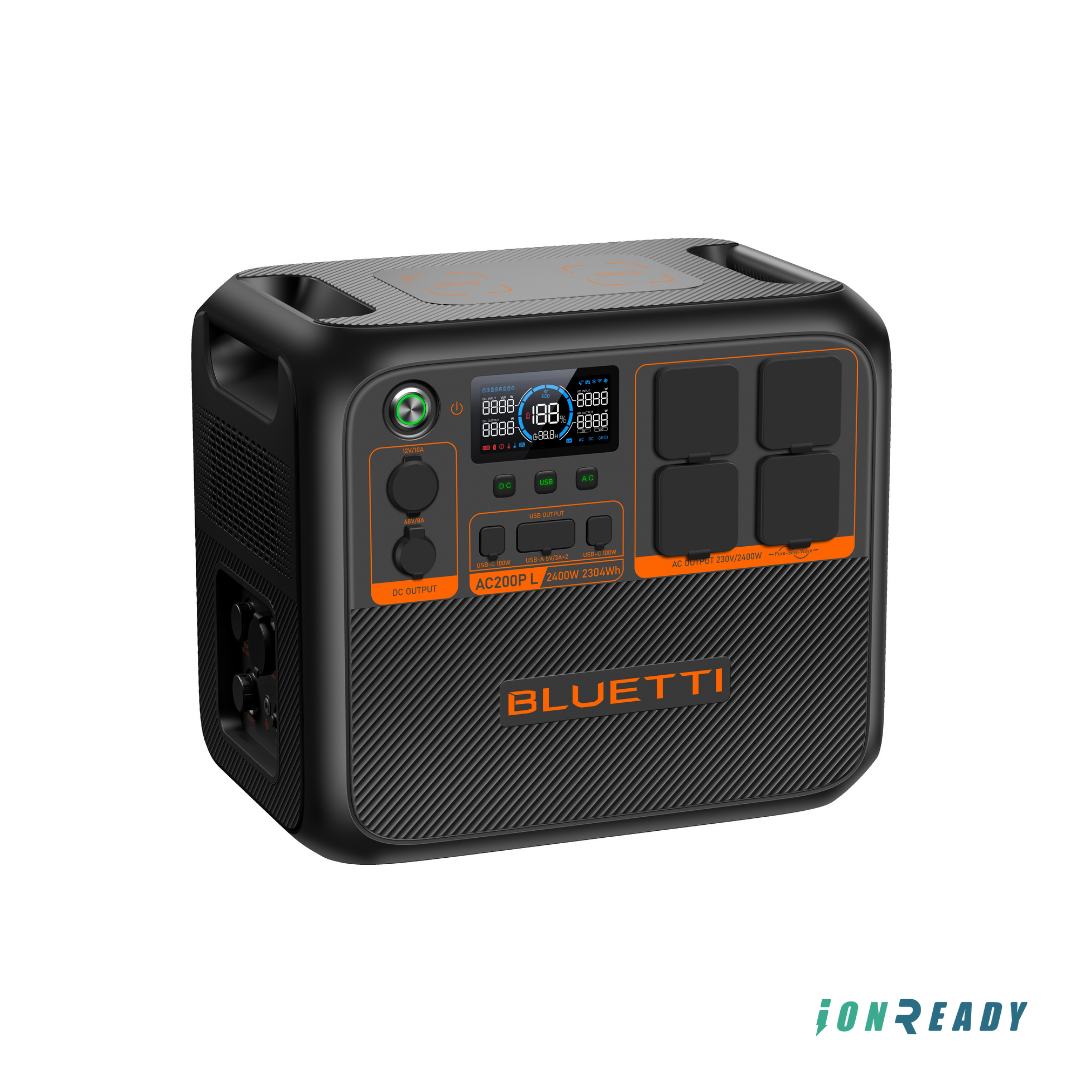

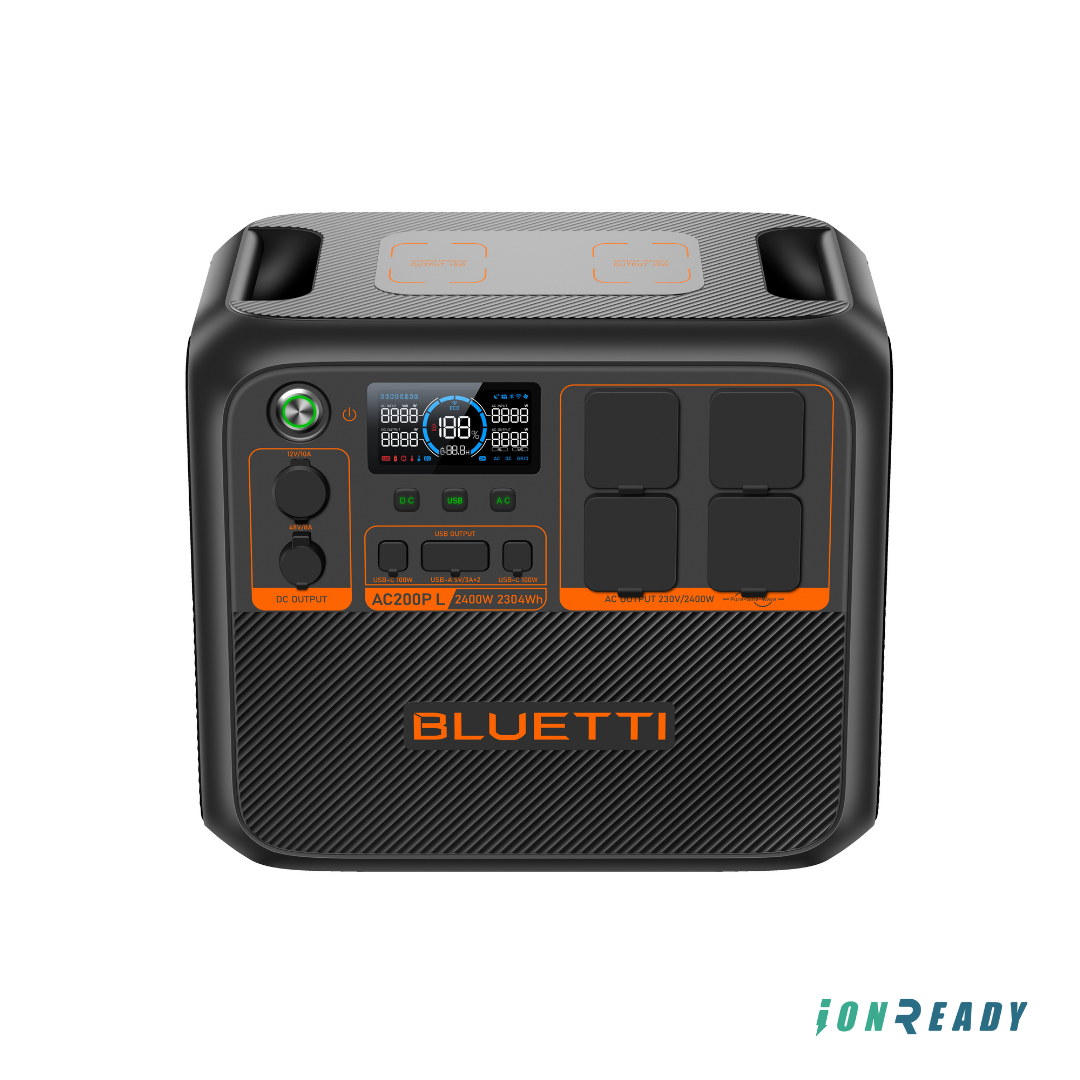

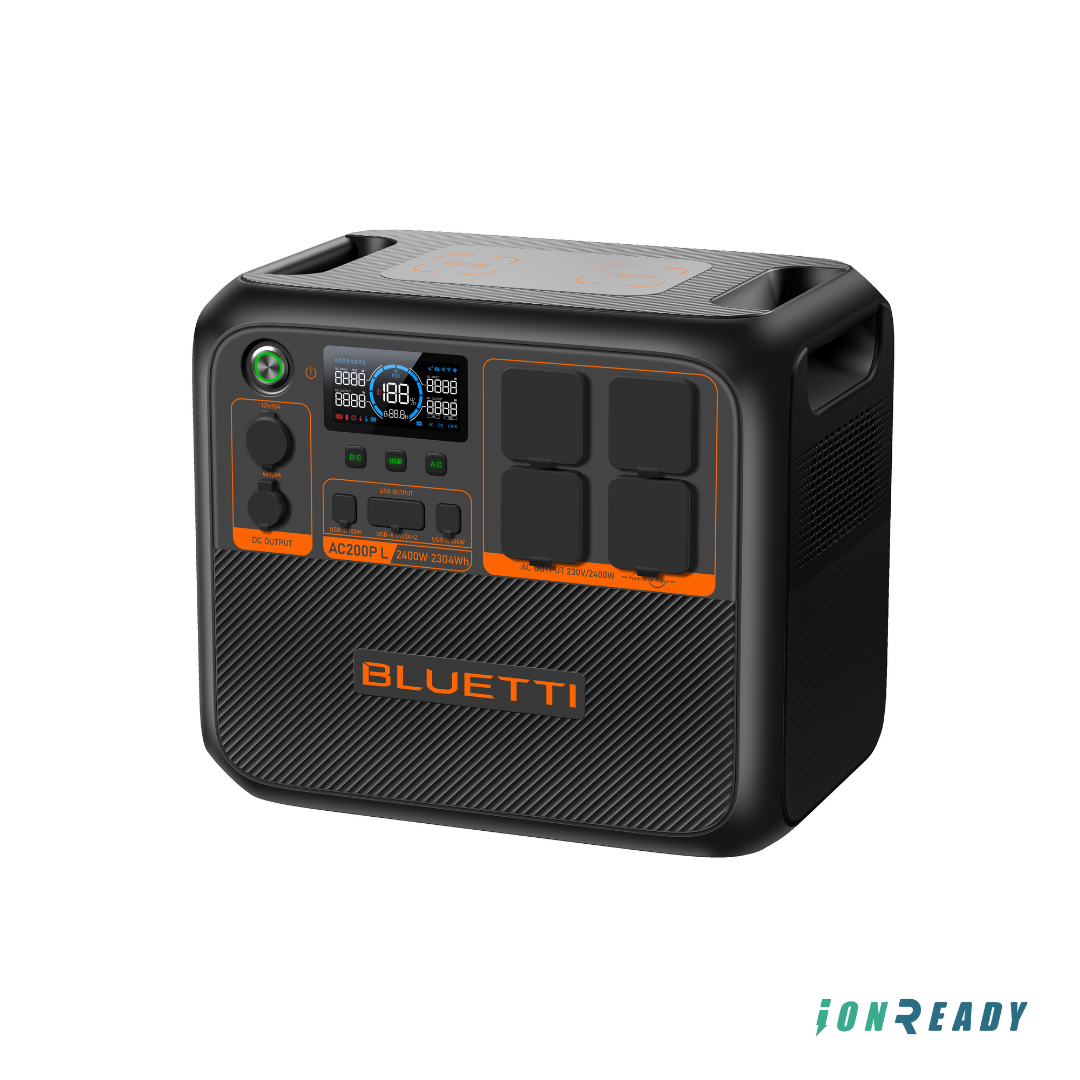

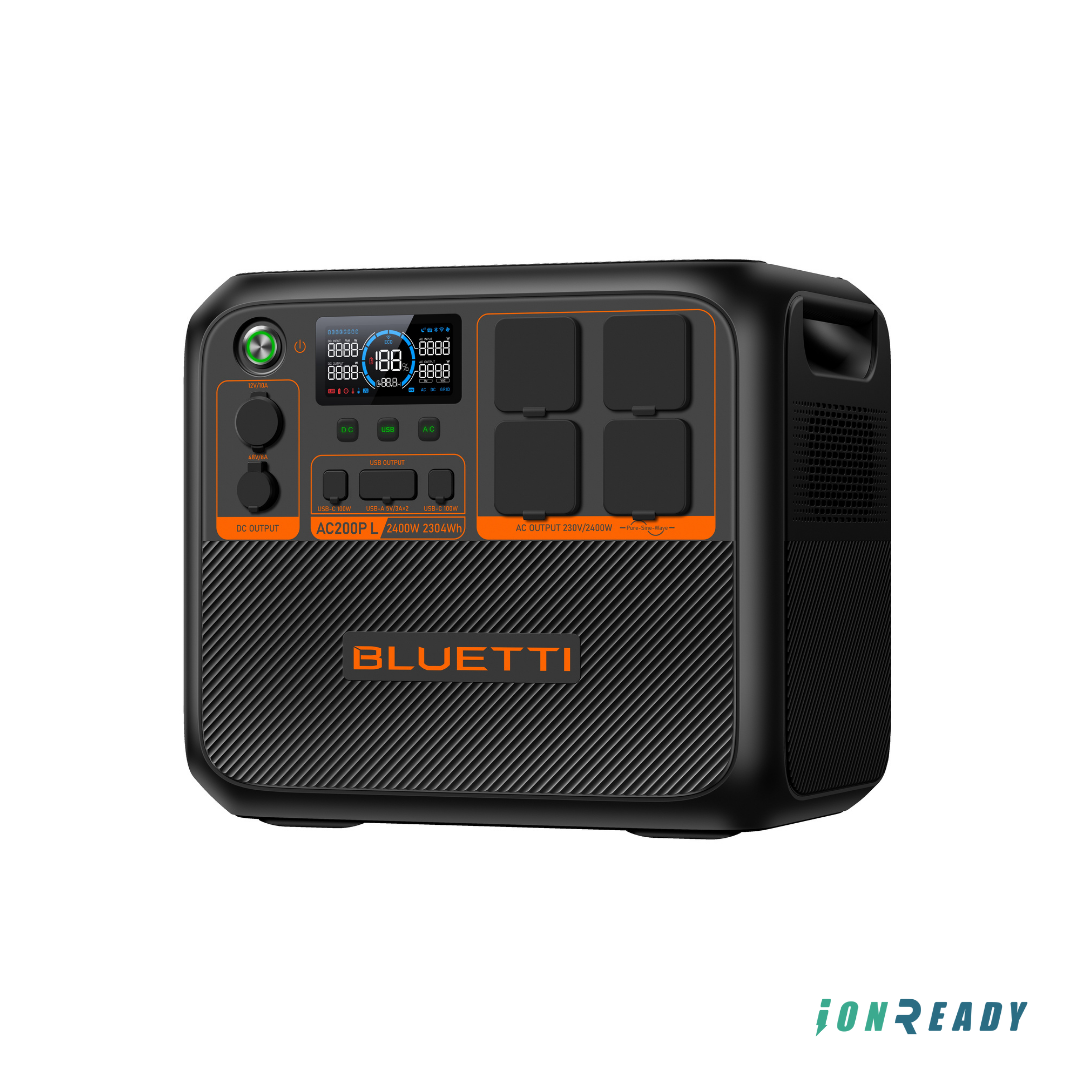

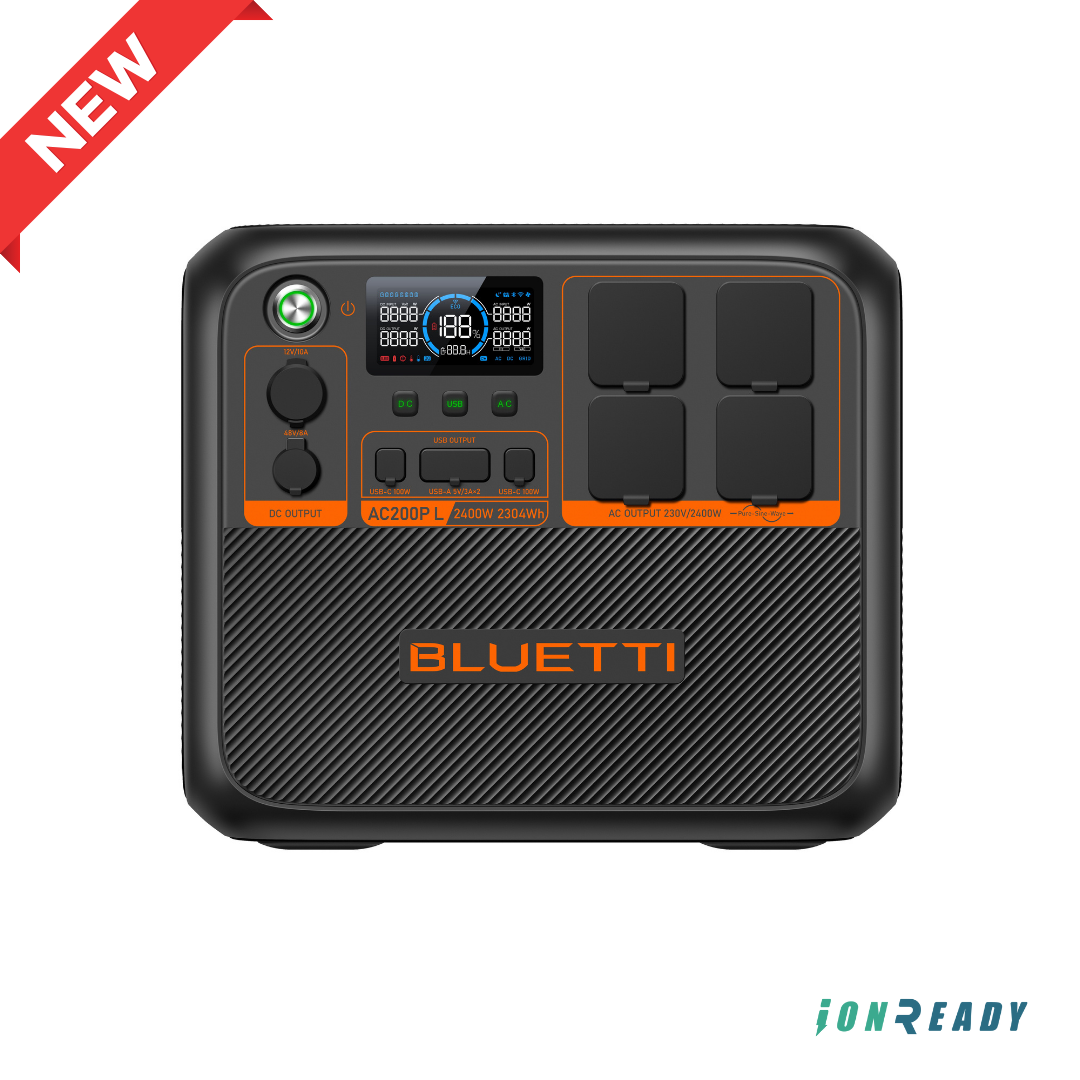

BLUETTI Portable Power Station AC200PL, 2400W LiFePO4 Battery Backup, 2304Wh Expandable, RV Trailer, Power Outage
• First in New Zealand! Exclusive Access
• 5 Years Warranty
• Super-Fast Charging: Power Up to 80% in Just 60 Minutes.
• Scalable Energy Storage: Expand Your Capacity Up to 8kWh.
• Universal Compatibility: Seamlessly Integrates with B210P, B230, and B300 Expansion Batteries.
• Powerful Output: Delivers 2,400W to Support Diverse Load Requirements in Your RV or Home.
Features
Ready for 99% of Devices
The AC200P L delivers 2,400W rated power, covering most loads in your RV or at home. Activate the Power Lifting Mode via the BLUETTI App, and you can kick it up a notch and run power-hungry heating devices up to 3,600W.
Your Plug-and-play RV Power Solution
With the D40 Voltage Regulator*, a DC-DC battery charger exclusively designed for RV, you can directly charge the 12V house batteries in your RV via AC200P L, solar panels, or starter batteries. Thus, the essentials in your mobile home, such as the mini fridge, air conditioner, and tire pump, will be backed by sufficient power source. *Sold separately.

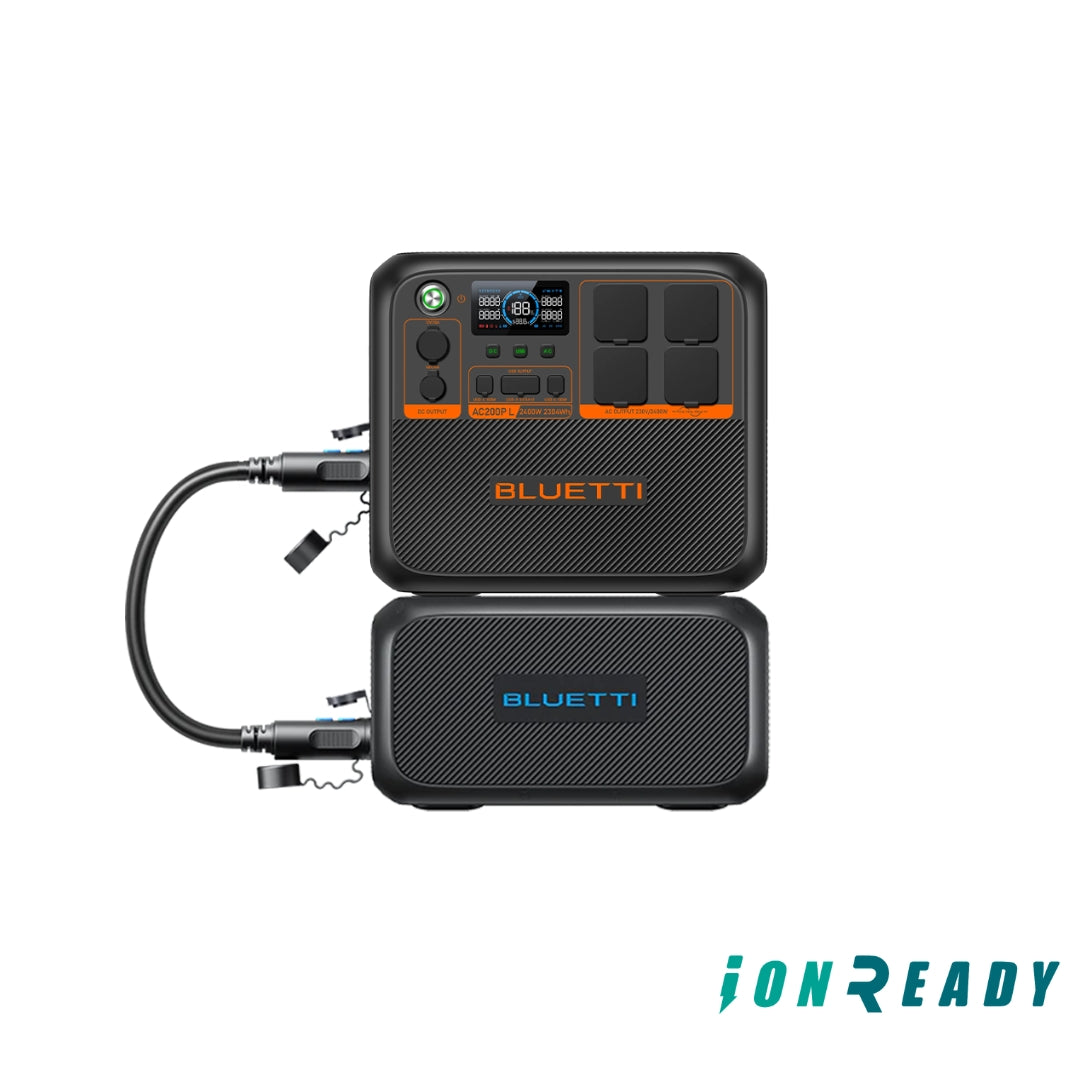

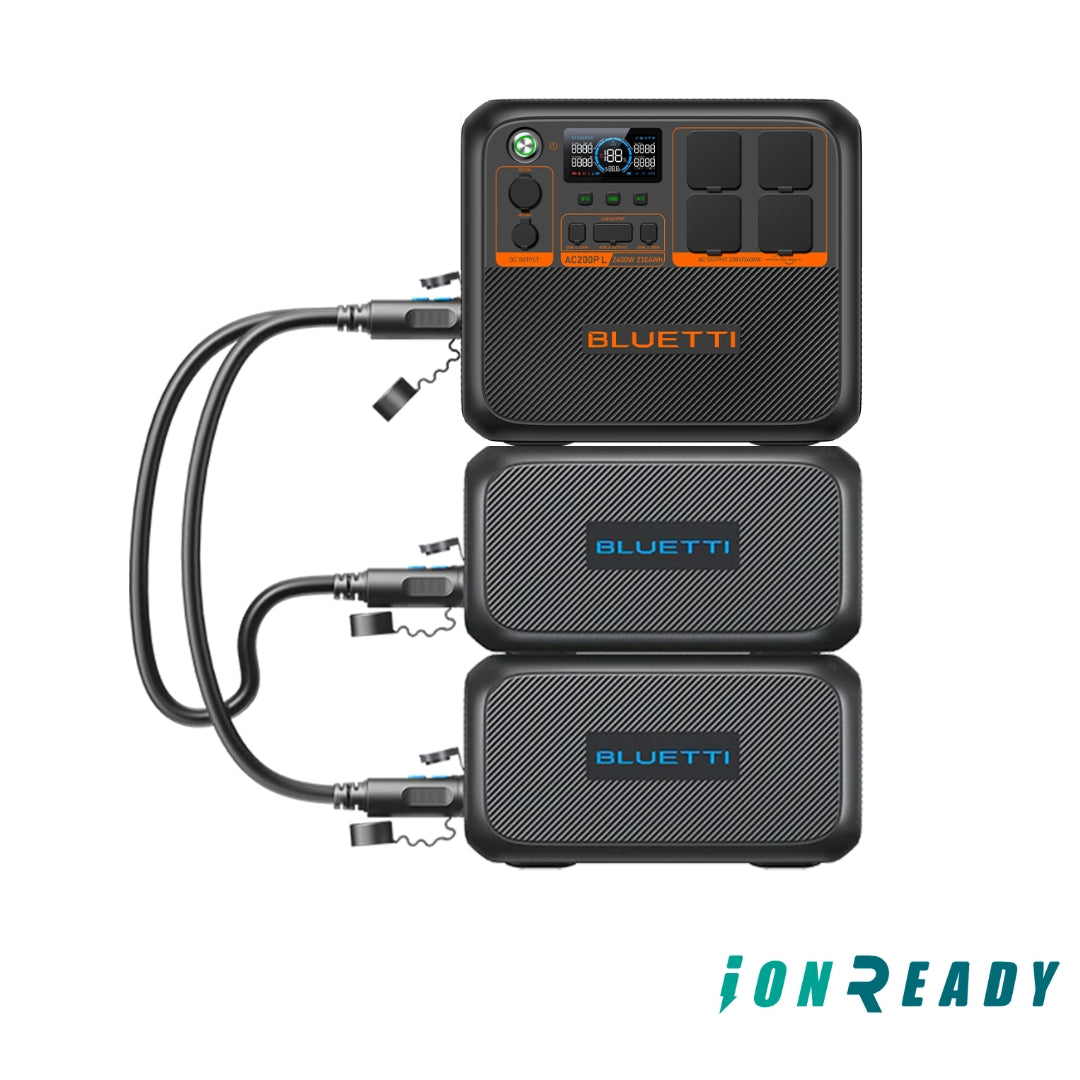

Up to 8kWh Expandable Capacity

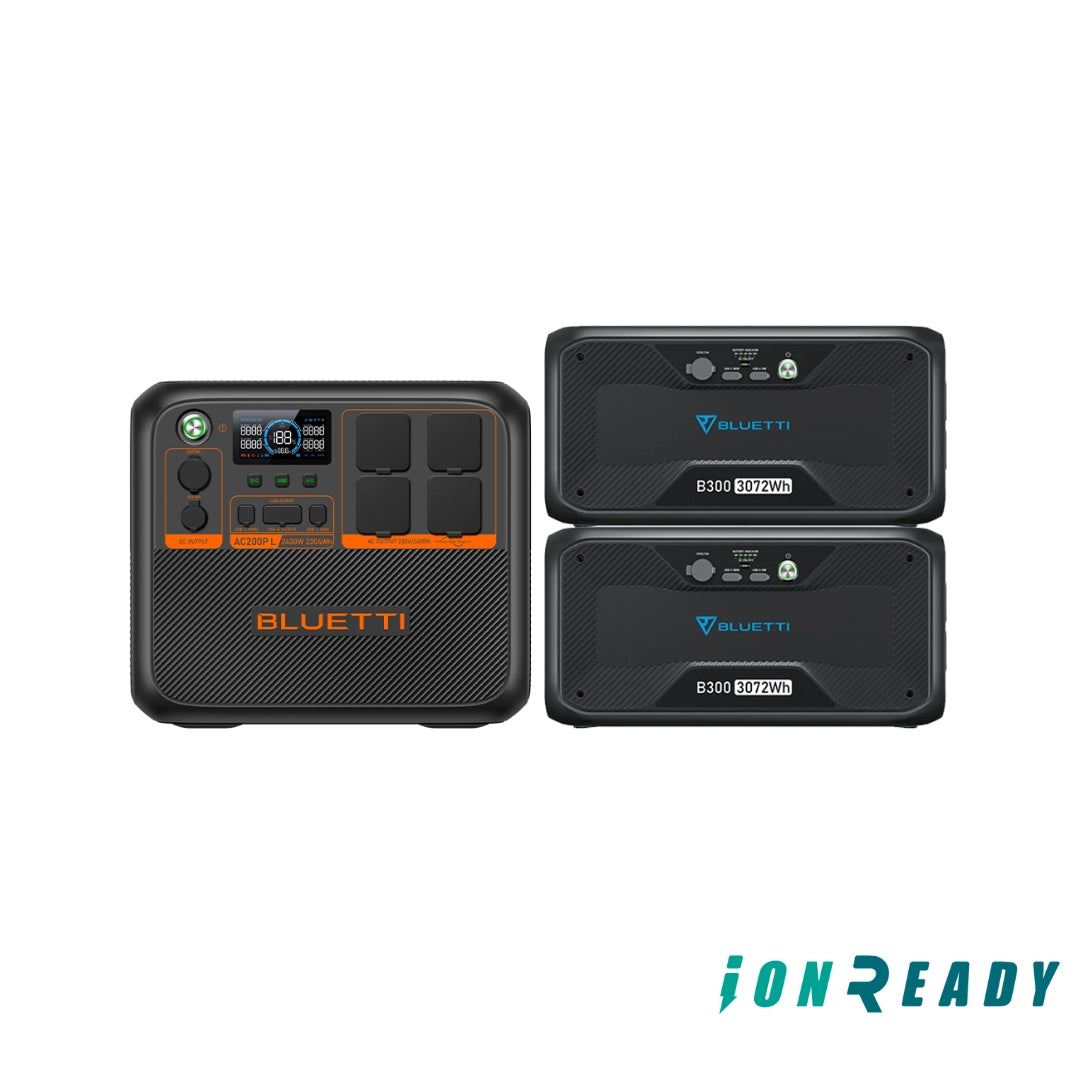

AC200P L is perfectly compatible with B210P, B230, and B300 expansion batteries. So you can customize the capacity to an incredible 8,448Wh. Making the full potential of limitless power has never been easier.
Fastest Charging Among 2kWh Power Station
With accelerated 2,400W Turbo Charging, replenish to 80% capacity in just 1 Hour, and 1.5 hours for a full charge! AC200P L sets a new standard for most competitors in the market. Get ready to power up swiftly for uninterrupted use during your adventures.
Charge Your Way, Power Your Way
Flexible to get it charged via AC outlets, solar panels, car charger, generator, or lead-acid batteries, you can stay powered and explore the unknown with confidence even far off the grid.
Tech Specs
| BATTERY INFO | Capacity: | 2,3040Wh |
| Type: | LiFePO4 (Lithium Iron Phosphate) | |
| Life Cycles: | 3,000+ Cycles to 80% Original Capacity | |
| Shelf-life: | Recharge to 80% Every 3-6 Months | |
| Management System: | MPPT Controller, BMS, etc |
| OUTPUT | AC Outlets: | 4 ×230V/10.5A 2,400W In Total |
| Inverter Type: | Pure Sine Wave | |
| Power Lifting Mode: | 3,600W | |
| Surge Power: | 3,600W | |
| USB-C Port: | 2 x 100W Max | |
| USB-A Port: | 2 x18W (Each Port) | |
| 12V DC Outlet: | 1 ×12V/10A (Car outlet, regulated.) | |
| 48V DC Outlet: | 1 ×48V/8A (RV Outlet) | |
| Wireless Charging Ports: | 2 ×15W(RV Outlet) |
| INPUT | AC Power Input (Turbo Mode): | 2,400W Max |
| Solar Input: | 1,200W Max, 12V-145VDC, 15A | |
| Car Input: | 12/24V from Cigarette Lighter Port | |
| Max Input: | 2,400W |
| RECHARGE TIMES | AC Charging Cable (950W Turbo Charging): | ≈1.5 Hours |
| Solar Panel (s)(1,200W): | ≈2.5 Hours (With prime sunshine, ideal orientation and low temperature) |
| GENERAL | Pass-through Charging: | Yes |
| Weight: | About 63.5lbs / 28.8kg | |
| Dimensions (LxWxD): | 420mm × 280mm × 366.5mm / 16.5in × 11in × 14.4in | |
| Charging Temperature: | 0°C-40°C / 32°F-104°F | |
| Discharging Temperature: | -20°C-40°C / -4°F-104°F | |
| Storage Temperature: | -20°C-40°C / -4°F-104°F | |
| Certification: | UKCA, PSE, TELEC, RCM, CE, CA65, UL Standard | |
| Warranty: | 5 Years |
| In The Box: 1 ×BLUETTI AC200P L Portable Power Station1 ×AC Charging Cable1 ×DC Input Cable1 ×Solar Charging Cable1 ×Car Charging Cable1 ×Grounding Screw1 ×User Manual1 ×Warranty Card |
Ready for 99% of Devices
The AC200P L delivers 2,400W rated power, covering most loads in your RV or at home. Activate the Power Lifting Mode via the BLUETTI App, and you can kick it up a notch and run power-hungry heating devices up to 3,600W.
Your Plug-and-play RV Power Solution
With the D40 Voltage Regulator*, a DC-DC battery charger exclusively designed for RV, you can directly charge the 12V house batteries in your RV via AC200P L, solar panels, or starter batteries. Thus, the essentials in your mobile home, such as the mini fridge, air conditioner, and tire pump, will be backed by sufficient power source. *Sold separately.
Up to 8kWh Expandable Capacity
AC200P L is perfectly compatible with B210P, B230, and B300 expansion batteries. So you can customize the capacity to an incredible 8,448Wh. Making the full potential of limitless power has never been easier.
Fastest Charging Among 2kWh Power Station
With accelerated 2,400W Turbo Charging, replenish to 80% capacity in just 1 Hour, and 1.5 hours for a full charge! AC200P L sets a new standard for most competitors in the market. Get ready to power up swiftly for uninterrupted use during your adventures.
Charge Your Way, Power Your Way
Flexible to get it charged via AC outlets, solar panels, car charger, generator, or lead-acid batteries, you can stay powered and explore the unknown with confidence even far off the grid.
| BATTERY INFO | Capacity: | 2,3040Wh |
| Type: | LiFePO4 (Lithium Iron Phosphate) | |
| Life Cycles: | 3,000+ Cycles to 80% Original Capacity | |
| Shelf-life: | Recharge to 80% Every 3-6 Months | |
| Management System: | MPPT Controller, BMS, etc |
| OUTPUT | AC Outlets: | 4 ×230V/10.5A 2,400W In Total |
| Inverter Type: | Pure Sine Wave | |
| Power Lifting Mode: | 3,600W | |
| Surge Power: | 3,600W | |
| USB-C Port: | 2 x 100W Max | |
| USB-A Port: | 2 x18W (Each Port) | |
| 12V DC Outlet: | 1 ×12V/10A (Car outlet, regulated.) | |
| 48V DC Outlet: | 1 ×48V/8A (RV Outlet) | |
| Wireless Charging Ports: | 2 ×15W(RV Outlet) |
| INPUT | AC Power Input (Turbo Mode): | 2,400W Max |
| Solar Input: | 1,200W Max, 12V-145VDC, 15A | |
| Car Input: | 12/24V from Cigarette Lighter Port | |
| Max Input: | 2,400W |
| RECHARGE TIMES | AC Charging Cable (950W Turbo Charging): | ≈1.5 Hours |
| Solar Panel (s)(1,200W): | ≈2.5 Hours (With prime sunshine, ideal orientation and low temperature) |
| GENERAL | Pass-through Charging: | Yes |
| Weight: | About 63.5lbs / 28.8kg | |
| Dimensions (LxWxD): | 420mm × 280mm × 366.5mm / 16.5in × 11in × 14.4in | |
| Charging Temperature: | 0°C-40°C / 32°F-104°F | |
| Discharging Temperature: | -20°C-40°C / -4°F-104°F | |
| Storage Temperature: | -20°C-40°C / -4°F-104°F | |
| Certification: | UKCA, PSE, TELEC, RCM, CE, CA65, UL Standard | |
| Warranty: | 5 Years |
| In The Box: 1 ×BLUETTI AC200P L Portable Power Station1 ×AC Charging Cable1 ×DC Input Cable1 ×Solar Charging Cable1 ×Car Charging Cable1 ×Grounding Screw1 ×User Manual1 ×Warranty Card |
FAQ

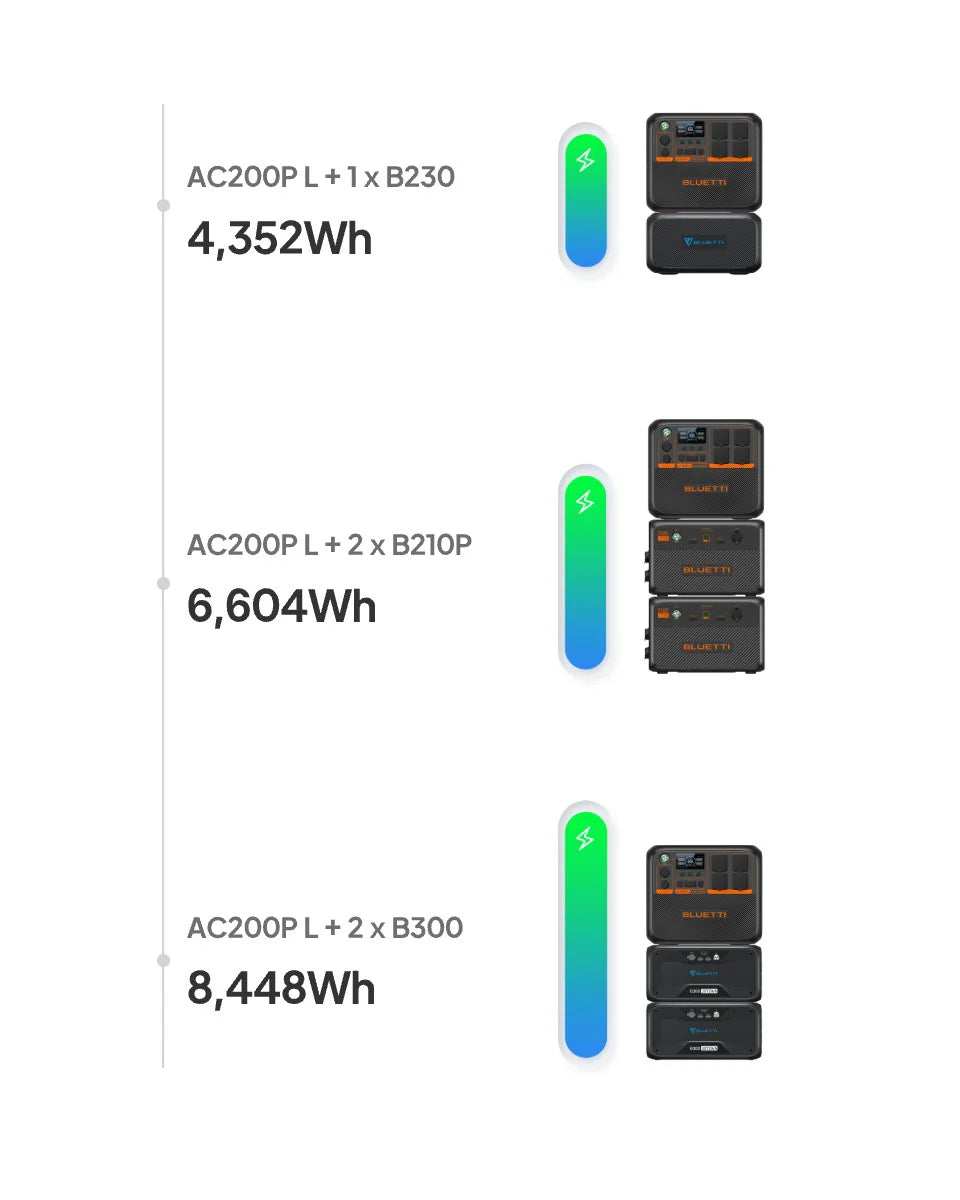

AC200P L + 2*B210P = 6,604Wh;
AC200P L + 1* B230 = 4,352Wh;
AC200P L + 2* B300 = 8,448Wh.
No.
Yes. Once connected via Bluetooth or WiFi, the BLUETTI App enables you to control the AC200P L remotely, like switching the working mode and upgrading the firmware.
Yes. Within 20ms switching time.
Open Circuit Voltage: 12-145V
Input Power: 1,200W Max.
Include MC4 connectors.
Highly Recommended:
6x BLUETTI PV120: ≈3.5hrs.
5x BLUETTI PV200: ≈2.5hrs.
3x BLUETTI PV350: ≈2.5hrs
* For reference ONLY.
No. So please do NOT store it in a humid environment for a long time for optimal performance.
Yes. It supports pass-through charging.
Running time = Battery capacity × DoD × η ÷ Device rated power
DoD refers to Depth of Discharge and η is local inverter efficiency. For AC200P L, DoD and η are 95% and 93%. If you run a 1,000W microwave oven with it, the running time will be:
2,304Wh × 90% × 90% ÷ 1,000W ≈ 1.87hrs
Note:
1) The formula is NOT suitable for inductive loads with compressors, like refrigerator, air conditioner, etc.
2) The above data is for reference ONLY.
2,400W via AC outlet and solar panels simultaneously.
No. this may damage the internal structure. Please keep it upright during storage or moving.
Yes. You can easily swap battery packs for continuous power use, and the system can hold two batteries at once.
No. If the battery pack is faulty or even dead, please contact BLUETTI Support for further assistance.
